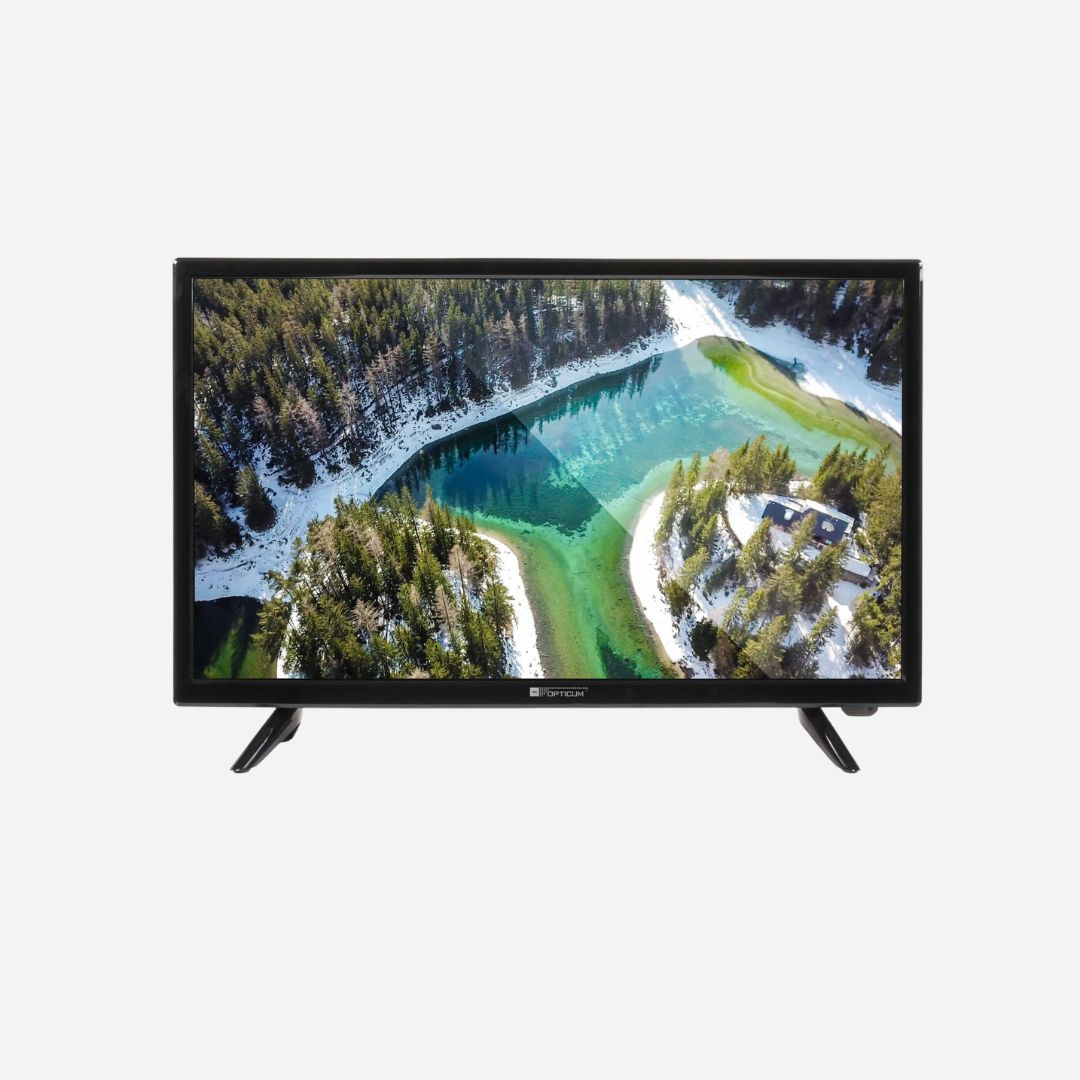

24″ TV Opticum RED LE-24Z1S (12V/24V)
The modern Opticum Red TV 24″ LE-2419D is a compact HD Ready device with a 24-inch screen and a resolution of 1366×768. Thanks to the use of DLED backlighting and a 3000:1 contrast ratio, the TV provides a clear image and vivid colors (16.7 million colors) with wide viewing angles of 176° horizontally and vertically.
Download
Description
The modern Opticum Red TV 24″ LE-2419D is a compact HD Ready device with a 24-inch screen and a resolution of 1366×768. Thanks to the use of DLED backlighting and a 3000:1 contrast ratio, the TV provides a clear image and vivid colors (16.7 million colors) with wide viewing angles of 176° horizontally and vertically.
The device is equipped with an advanced triple DVB-T2/S2/C tuner, which enables the reception of terrestrial, satellite, and cable TV without the need to purchase external decoders. A built-in CI+ slot additionally allows for the reception of encrypted satellite programs directly on the TV via a conditional access module.
The TV supports modern video compression standards H.265/HEVC and H.264, guaranteeing compatibility with current broadcasting standards and high playback efficiency. An intuitive, multi-language menu (including Polish) and a multi-functional EPG (Electronic Program Guide) significantly facilitate daily operation.
Thanks to the USB ports, the TV acts as a multimedia player, offering a PVR function for recording programs and Time Shift, which allows you to pause and rewind live TV. A special Hotel Mode makes the device perfect for guesthouses and hotels, allowing for the blocking of selected functions and settings.
The Opticum Red TV 24″ is characterized by high energy efficiency – maximum power consumption is 36W, while in standby mode, consumption drops below 0.5W. Compact dimensions (556x368x176 mm with base) and a low net weight (2.2 kg) make it an ideal solution for smaller rooms, kitchens, or summer houses.
Key Product Features:
- 24″ LED HD Ready screen (1366×768) with 60 Hz refresh rate
- Triple built-in DVB-T2 / DVB-S2 / DVB-C tuner
- Support for modern H.265/HEVC compression
- CI+ interface for conditional access modules
- Multimedia PVR, Timer, and Time Shift functions via USB
- Hotel Mode and function locking option
- Multi-language menu (Polish/English/German and others)
- Low power consumption in standby mode (<0.5W)
Connectors:
- HDMI x1 – digital video and audio input (supports up to 1080p)
- USB x2 – ports for multimedia playback and PVR recording
- SCART – analog output for older devices
- VGA + PC Audio – possibility to connect a computer
- RF input – antenna input (75 Ohm)
- CI+ slot – socket for an external access module
The Opticum Red TV 24″ LE-2419D receiver is the perfect solution for those looking for a universal and energy-efficient television that combines terrestrial, satellite, and cable signal reception in one compact housing.
Hardware Specification
Screen and Image
The TV is equipped with a 24" LED matrix with HD Ready resolution of 1366x768. The applied DLED backlighting provides a brightness of 200 cd/m² and a contrast ratio of 3000:1, which, combined with 16.7 million colors, guarantees a vivid and clear image. Wide viewing angles (176° vertically and horizontally) and a response time of 7 ms ensure comfortable use in various conditions.
Tuner and Decoder
The device features an integrated, triple DVB-T2/S2/C tuner, which enables the reception of terrestrial, satellite, and cable television. It supports modern video compression standards H.265/HEVC and H.264, allowing for high-quality content display while maintaining optimal bandwidth.
Power Supply and Energy Efficiency
The receiver is characterized by low power consumption, using a maximum of 36W during operation. In standby mode, the device enters energy-saving mode, consuming less than 0.5W.
Outputs and Ports
Video and Audio Connectors
The TV offers a rich set of connectors, including an HDMI port (supporting resolutions up to 1080p), a SCART socket, and a VGA input with PC Audio, allowing for the connection of a computer or older multimedia devices. The RF input (75 Ohm) allows for the connection of external antennas.
USB and Interfaces
Two USB ports allow for the connection of external storage media for multimedia purposes. The device also features a built-in CI+ (Common Interface) slot, which enables the use of conditional access cards for encrypted pay-TV channels.
Software Features
Multimedia PVR and Time Shift
The TV software supports the program recording function (PVR) to USB media and the Time Shift function, which allows for pausing and resuming live TV. A programmable Timer is also available.
EPG and Teletext
A multi-functional Electronic Program Guide (EPG) allows users to keep track of the TV schedule in real-time, and the teletext function provides access to additional text information.
Hotel Mode and Locks
The TV is equipped with a dedicated Hotel Mode and an option to block selected functions, making it easier to manage the device in public places or guesthouses.
Interface and Menu
The device features an intuitive, multi-language menu available in many languages, including Polish, English, German, Czech, and Slovak.
