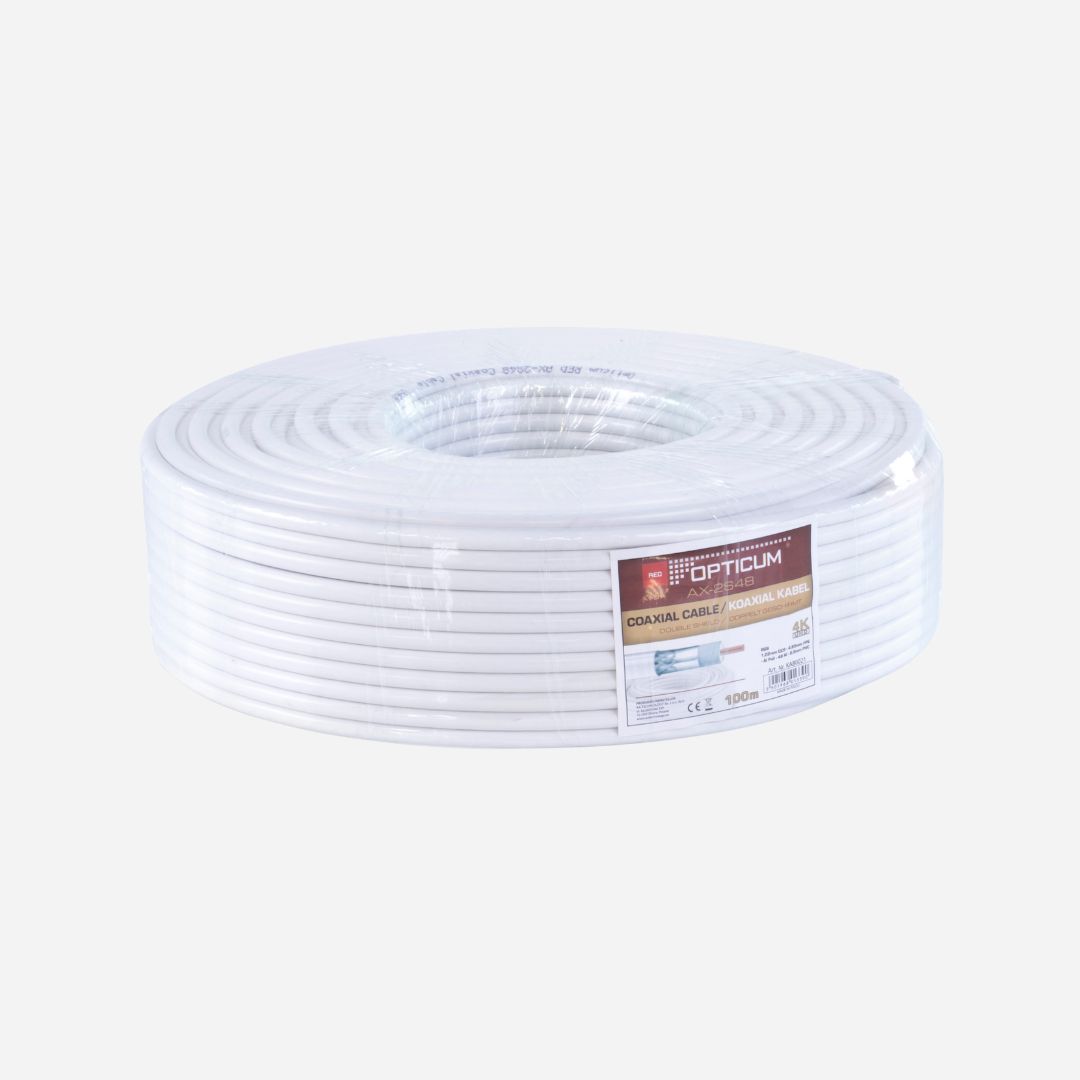

Coaxial cable OPTICUM RED AX-2S48 10-100 m
Coaxial cable OPTICUM RED AX-2S48 is a professional solution designed for users who require stable signal transmission at the highest resolutions. Thanks to the use of double shielding and high-quality materials, this product is characterized by excellent technical parameters.
Length variants:
- 10m (Art. No. KAB0033)
- 15m (Art. No. KAB0034)
- 20m (Art. No. KAB0035)
- 25m (Art. No. KAB0036)
- 30m (Art. No. KAB0037)
- 50m (Art. No. KAB0051 / KAB0038)
- 100m (Art. No. KAB0021)
Download
Description
Coaxial cable OPTICUM RED AX-2S48 is a professional solution designed for users requiring stable signal transmission in the highest resolutions. Thanks to the use of double shielding and high-quality materials, this product is characterized by excellent technical parameters.
The Double Shield construction effectively protects the signal against external interference. The durable outer jacket made of white PVC ensures resistance to weather conditions, which allows for indoor and outdoor installation.
Key product features:
- Image standard: Full compatibility with 4K UHD, Full HD technologies and analog signal.
- Double shielding: Aluminum foil and 48 AL braid for maximum protection against interference.
- High quality workmanship: 1.02 mm core in CCS technology and solid polyethylene dielectric.
- Versatility: Designed for satellite, terrestrial and collective system installations.
- Easy installation: 75 Ohm impedance and 6.8 mm outer diameter.
Length variants:
- 10m (Art. No. KAB0033) Ideal for short indoor connections.
- 15m (Art. No. KAB0034) Standard length for home installations.
- 20m (Art. No. KAB0035) Optimal length for most single-family house installations.
- 25m (Art. No. KAB0036) Increased range for demanding cable routes.
- 30m (Art. No. KAB0037) Long section for extensive connections.
- 50m (Art. No. KAB0051 / KAB0038) Also available in sets with gold-plated F-type plugs.
- 100m (Art. No. KAB0021) Full reel for professional installation applications.
Technical specification:
- Cable type: RG6
- Impedance: 75 Ohm
- Inner core: 1.02 mm CCS
- Shielding: AL foil + 48 AL braid
- Outer jacket: 6.8 mm PVC
- Dielectric: 4.85 mm FPE
