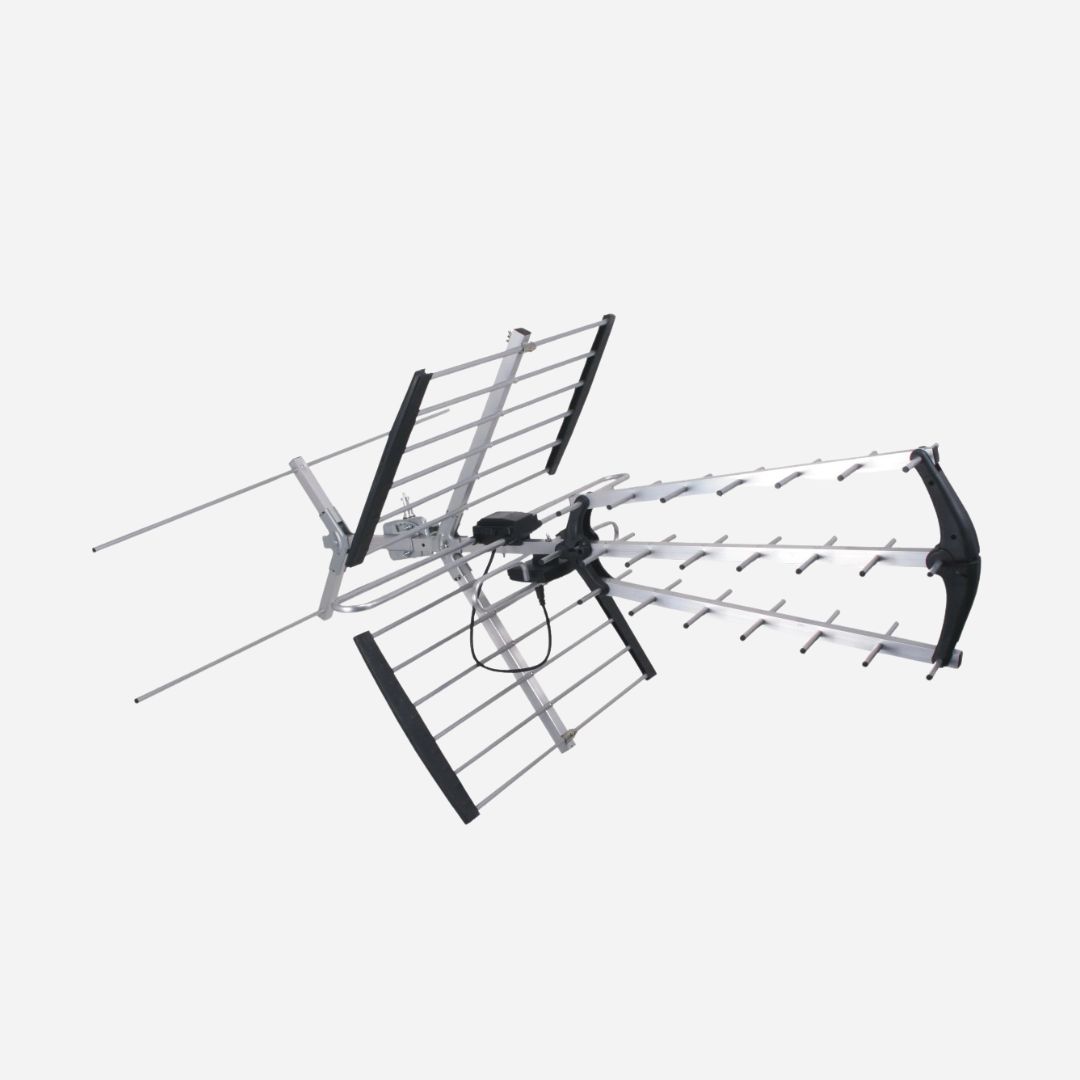

Directional Antenna AX Technology OLYMPIA BX1000+ LTE Combo DVB-T
The OLYMPIA BX1000+ LTE Combo directional antenna is a universal solution designed for stable reception of digital television in DVB-T and DVB-T2 standards. Thanks to its Combo design, the device operates in two frequency ranges: VHF (174–230 MHz) and UHF (470–790 MHz), allowing for the reception of all multiplexes, including MUX-8, using a single antenna. This model is equipped with an LTE filter that eliminates interference from mobile networks and offers installation flexibility in either vertical or horizontal polarization.
Download
Description
The Olympia BX1000+ LTE Combo directional antenna is an advanced solution designed for professional reception of digital terrestrial television in DVB-T and DVB-T2 standards. Thanks to its unique Combo design, the antenna enables simultaneous reception of signals from the UHF band (multiplexes 1, 2, 3, and 6) and the VHF band (multiplex 8), making it a complete tool for receiving the full programming offer.
A key feature of the BX1000+ model is the built-in LTE filter, which effectively eliminates interference from mobile networks (4G/LTE), ensuring a stable image without “pixelation” even near GSM transmitters. The antenna is characterized by a very high passive gain, allowing for crystal-clear reception of Full HD and 4K Ultra HD signals even from long distances from the transmitter.
The construction made of high-quality aluminum guarantees full resistance to variable weather conditions, such as precipitation, frost, or strong winds. The intuitive mounting system allows for quick installation without the need for specialized tools.
Key product features:
- Combo Reception: Integrated reception of VHF (horizontal and vertical polarization) and UHF bands.
- DVB-T2 Standard: Fully adapted to the new broadcasting standard (HEVC/H.265).
- LTE Filter: Effective protection against interference from the 790 MHz band.
- High Durability: Made of aluminum resistant to corrosion and UV radiation.
- High Gain: Provides stable signal reception from distant transmitters.
- Quick Assembly: “Click-clack” system for easy unfolding of elements.
Technical specification:
- Operating Bands: VHF (174-230 MHz) / UHF (470-790 MHz).
- Gain: up to 14-18 dB (depending on the band).
- Impedance: 75 Ω (F-type connector).
- Length: approx. 100 cm.
- Filter: Built-in LTE filter.
- Standards: 4K UHD, Full HD, DVB-T2.
The Olympia BX1000+ LTE Combo antenna is an ideal choice for demanding users looking for reliability and the highest image quality in extensive terrestrial television systems.
