Multiswitch Optimum RED OMS PRO-TR series

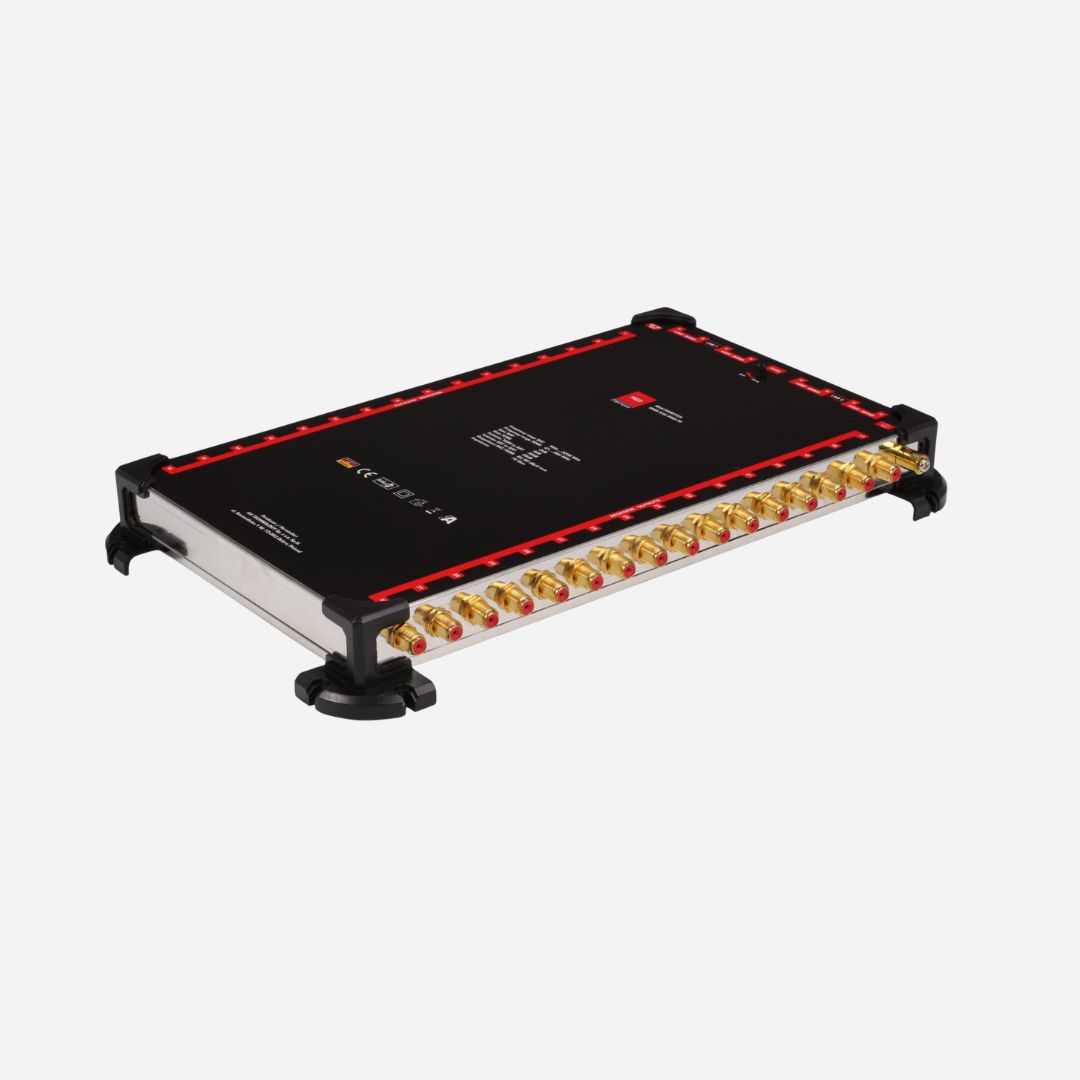

The Opticum OMS PRO TR series multiswitches are designed for the professional distribution of satellite and terrestrial signals (DVB-T2 and radio) in residential installations, multi-family buildings, and small guesthouses. These devices work with Quattro LNBs and feature built-in cable slope compensation, ensuring stable reception at all end-user outlets.
5-input models (1 satellite): OMS 5/8 PRO TR, OMS 5/12 PRO TR, OMS 5/16 PRO TR, OMS 5/24 PRO TR, OMS 5/32 PRO TR
9-input models (2 satellites): OMS 9/8 PRO TR, OMS 9/12 PRO TR, OMS 9/16 PRO TR, OMS 9/24 PRO TR, OMS 9/32 PRO TR
13-input models (3 satellites): OMS 13/8 PRO TR, OMS 13/12 PRO TR, OMS 13/16 PRO TR, OMS 13/24 PRO TR, OMS 13/32 PRO TR
17-input models (4 satellites): OMS 17/8 PRO TR, OMS 17/12 PRO TR, OMS 17/16 PRO TR, OMS 17/24 PRO TR, OMS 17/32 PRO TR
Description
Multiswitch Opticum OMS PRO TR Series
The Opticum OMS PRO TR series multiswitches are advanced distribution devices designed for constructing collective antenna installations. They allow for the distribution of satellite (DVB-S2) and terrestrial (DVB-T2) television signals to multiple end-receivers. Thanks to high input separation and built-in cable compensation, these devices guarantee the highest signal quality, even in extensive home and apartment building networks.
The OMS PRO TR series features a modern design with an external power supply, which increases operational stability and simplifies maintenance. The devices are compatible with Quattro-type LNBs, and the built-in active/passive terrestrial path switch allows for flexible adjustment to local DVB-T2 signal reception conditions.
Main Advantages:
- High Signal Quality: Built-in cable slope compensation offsets losses over long cable runs.
- Flexibility: Support for 1 to 4 satellite positions (depending on the model) and a terrestrial television input.
- Durability: A solid metal housing provides excellent shielding and protection against external interference.
- Energy Efficiency: A modern power supply circuit with low power consumption.
- Safety: The external power supply reduces device heating and extends its lifespan.
—
Product Variants
The OMS PRO TR series is available in various configurations, allowing for the support of 8 to 32 end-receivers and reception from 1, 2, 3, or 4 satellites:
| Model | Inputs (SAT+Terr.) | Outputs (Receivers) | Number of Satellites |
|---|---|---|---|
| OMS 5/x PRO TR | 4 + 1 | 8 / 12 / 16 / 24 / 32 | 1 (e.g., Hotbird) |
| OMS 9/x PRO TR | 8 + 1 | 8 / 12 / 16 / 24 / 32 | 2 (e.g., Hotbird + Astra) |
| OMS 13/x PRO TR | 12 + 1 | 8 / 12 / 16 / 24 / 32 | 3 satellites |
| OMS 17/x PRO TR | 16 + 1 | 8 / 12 / 16 / 24 / 32 | 4 satellites |
Technical Specifications (General Parameters):
- SAT Frequency Range: 950 – 2150 MHz.
- TER Frequency Range: 47 – 862 MHz.
- Isolation (Separation): > 28 dB.
- Maximum SAT Output Level: 100 dBµV.
- Power Supply: External 18V DC power adapter.
- LNB Type: Quattro (recommended).
TECHNICAL PARAMETERS
5-input models (1 satellite): OMS 5/8 PRO TR / 5/12 / 5/16 / 5/24 / 5/32
| Parameter | OMS 5/8 PRO TR | OMS 5/12 PRO TR | OMS 5/16 PRO TR | OMS 5/24 PRO TR | OMS 5/32 PRO TR |
|---|---|---|---|---|---|
| Inputs | 5 | 5 | 5 | 5 | 5 |
| Outputs | 8 | 12 | 16 | 24 | 32 |
| SAT Range | 950–2200 MHz | ||||
| TER Range | 47–862 MHz | ||||
| SAT Gain | 2 dB | ||||
| TER Gain | 4 dB | ||||
| TER to SAT Isolation | 30 dB | ||||
| SAT to TER Isolation | 28 dB | ||||
| Cross Pol. Isolation | 25 dB | ||||
| Max. SAT Output Level | 100 dBµV | ||||
| Max. TER Output Level | 88 dBµV | ||||
| Switching Method | 13/18V, 0/22 kHz |
9-input models (2 satellites): OMS 9/8 PRO TR / 9/12 / 9/16 / 9/24 / 9/32
| Parameter | OMS 9/8 PRO TR | OMS 9/12 PRO TR | OMS 9/16 PRO TR | OMS 9/24 PRO TR | OMS 9/32 PRO TR |
|---|---|---|---|---|---|
| Inputs | 9 | 9 | 9 | 9 | 9 |
| Outputs | 8 | 12 | 16 | 24 | 32 |
| SAT Range | 950–2200 MHz | ||||
| TER Range | 47–862 MHz | ||||
| SAT Gain | 2 dB | ||||
| TER Gain | 4 dB | ||||
| TER to SAT Isolation | 30 dB | ||||
| SAT to TER Isolation | 28 dB | ||||
| Switching Method | 13/18V, 0/22 kHz, DiSEqC 2.0 |
13-input models (3 satellites): OMS 13/8 PRO TR / 13/12 / 13/16 / 13/24 / 13/32
| Parameter | OMS 13/8 PRO TR | OMS 13/12 PRO TR | OMS 13/16 PRO TR | OMS 13/24 PRO TR | OMS 13/32 PRO TR |
|---|---|---|---|---|---|
| Inputs | 13 | 13 | 13 | 13 | 13 |
| Outputs | 8 | 12 | 16 | 24 | 32 |
| SAT / TER Range | 950–2200 MHz / 47–862 MHz | ||||
| SAT Gain | 4 dB | ||||
| TER Gain | 2 dB | ||||
| Cross Pol. Isolation | 28 dB | ||||
| Max. SAT Output Level | 100 dBµV | ||||
| Switching Method | 13/18V, 0/22 kHz, DiSEqC 2.0 |
17-input models (4 satellites): OMS 17/8 PRO TR / 17/12 / 17/16 / 17/24 / 17/32
| Parameter | OMS 17/8 PRO TR | OMS 17/12 PRO TR | OMS 17/16 PRO TR | OMS 17/24 PRO TR | OMS 17/32 PRO TR |
|---|---|---|---|---|---|
| Inputs | 17 | 17 | 17 | 17 | 17 |
| Outputs | 8 | 12 | 16 | 24 | 32 |
| SAT / TER Range | 950–2200 MHz / 47–862 MHz | ||||
| SAT Gain | 4 dB | ||||
| TER Gain | 2 dB | ||||
| Cross Pol. Isolation | 28 dB | ||||
| Max. SAT Output Level | 100 dBµV | ||||
| Switching Method | 13/18V, 0/22 kHz, DiSEqC 2.0 |
Additional information
| model | Single (LSP 04HBE), Twin (LTP 04HBE), Quad (LQP 04HBE), Quattro (LRP 04HBE), Octo (LOP 04HBE) |
|---|
