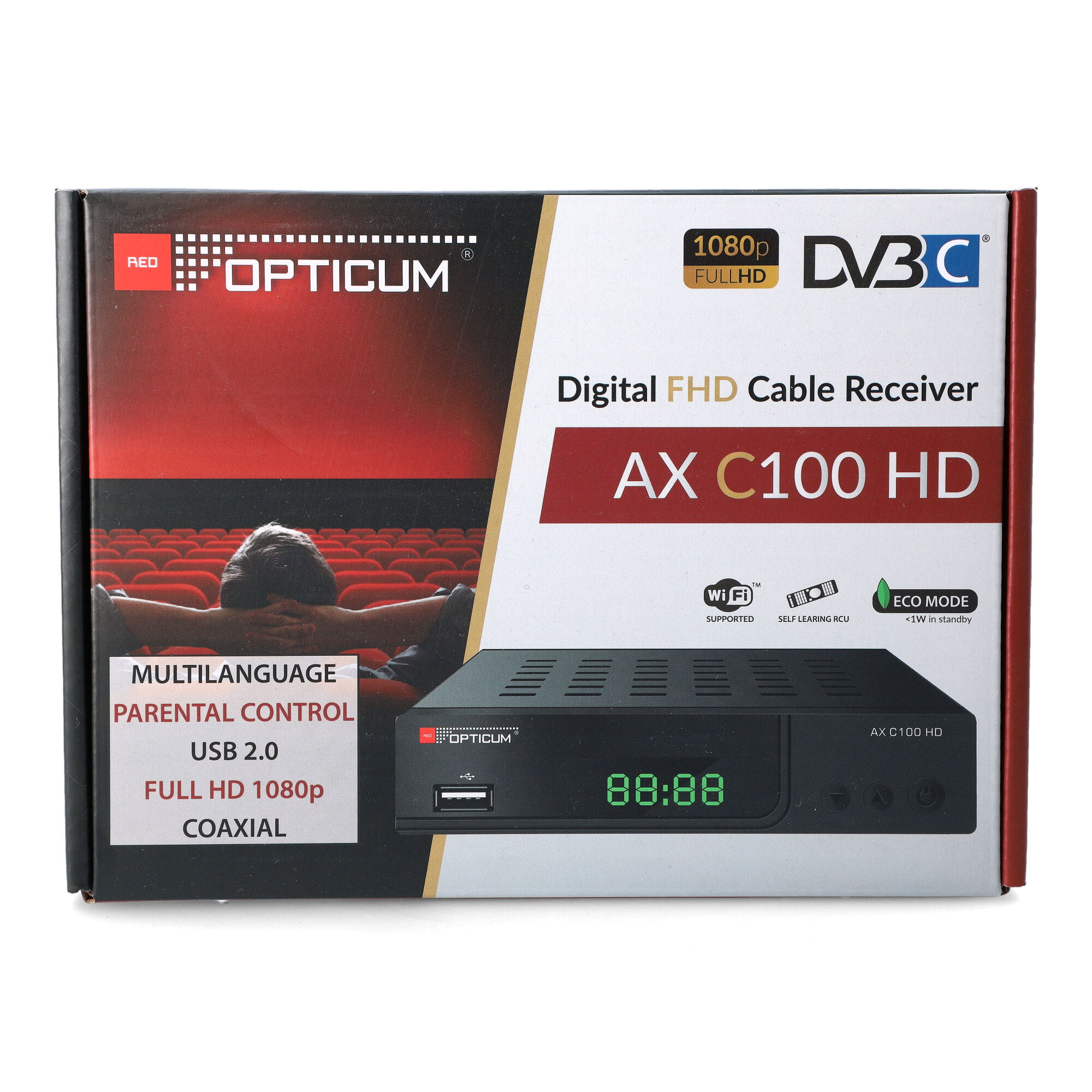

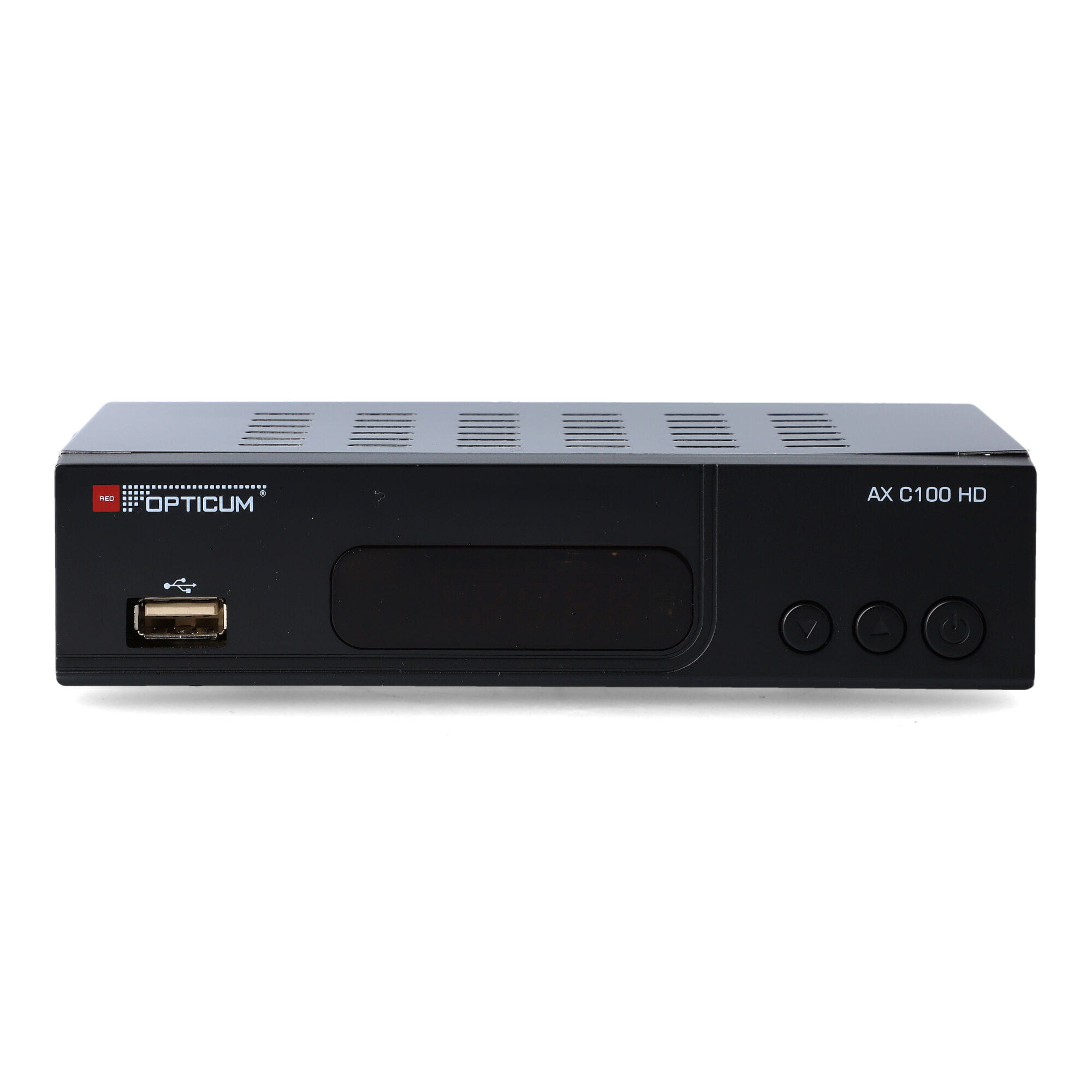

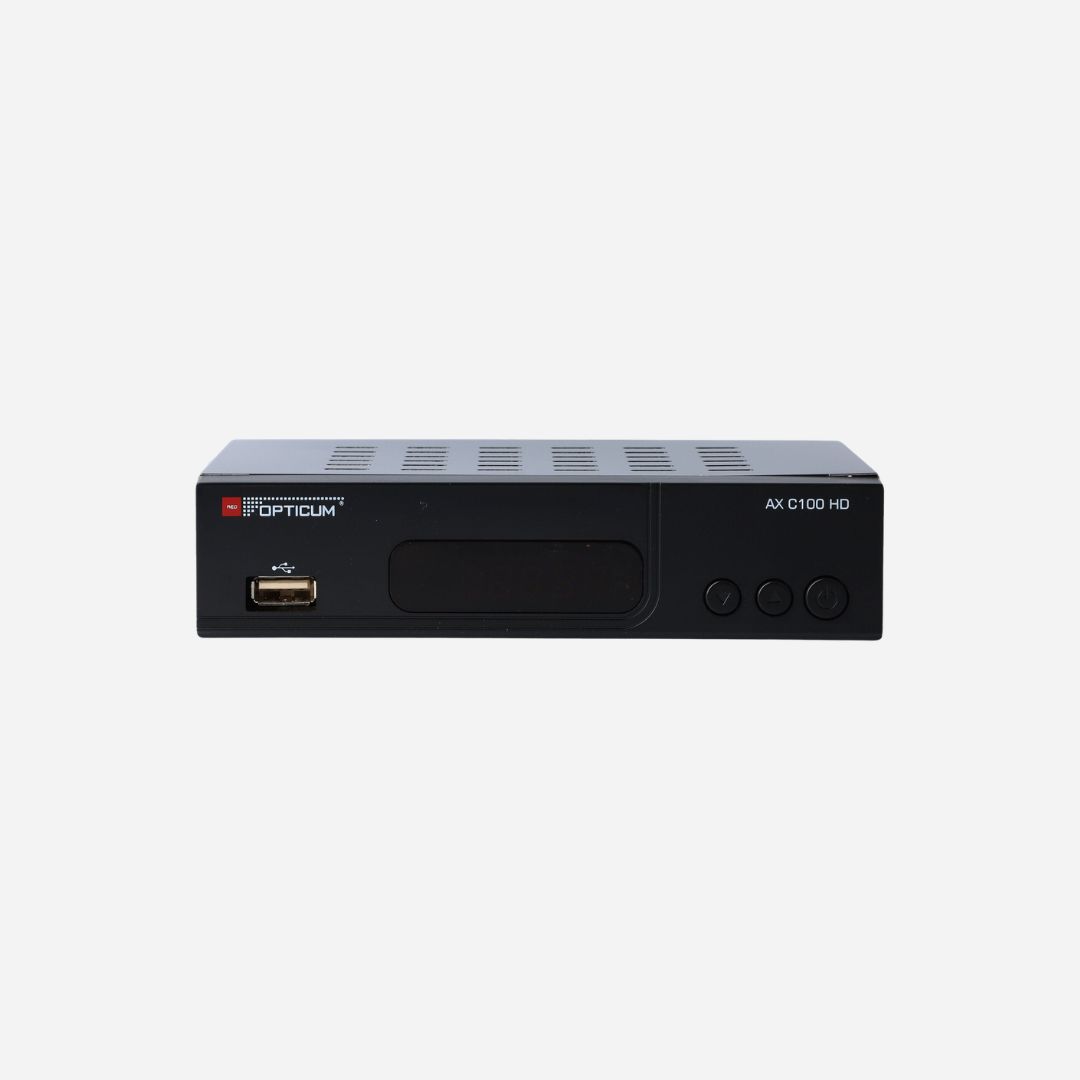

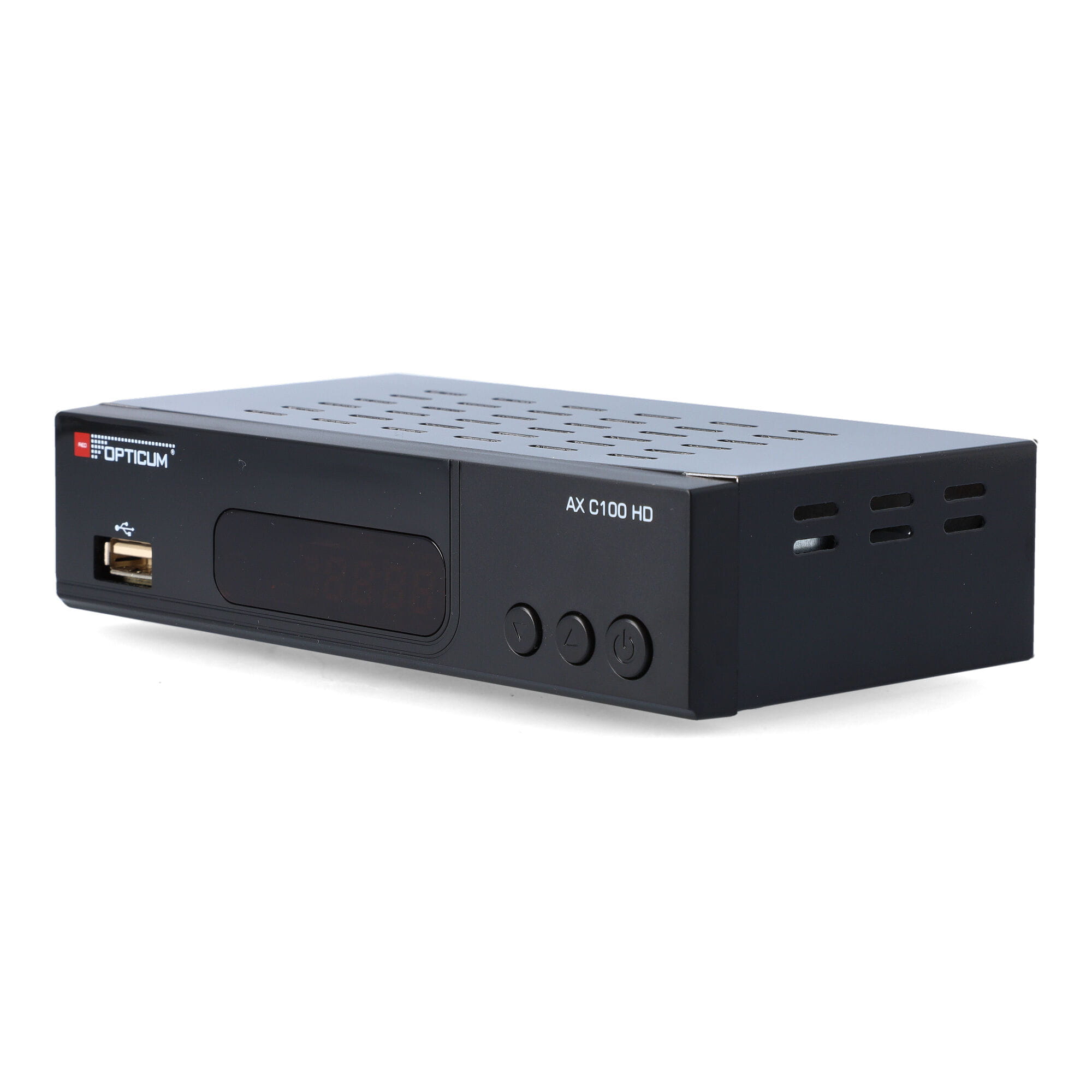

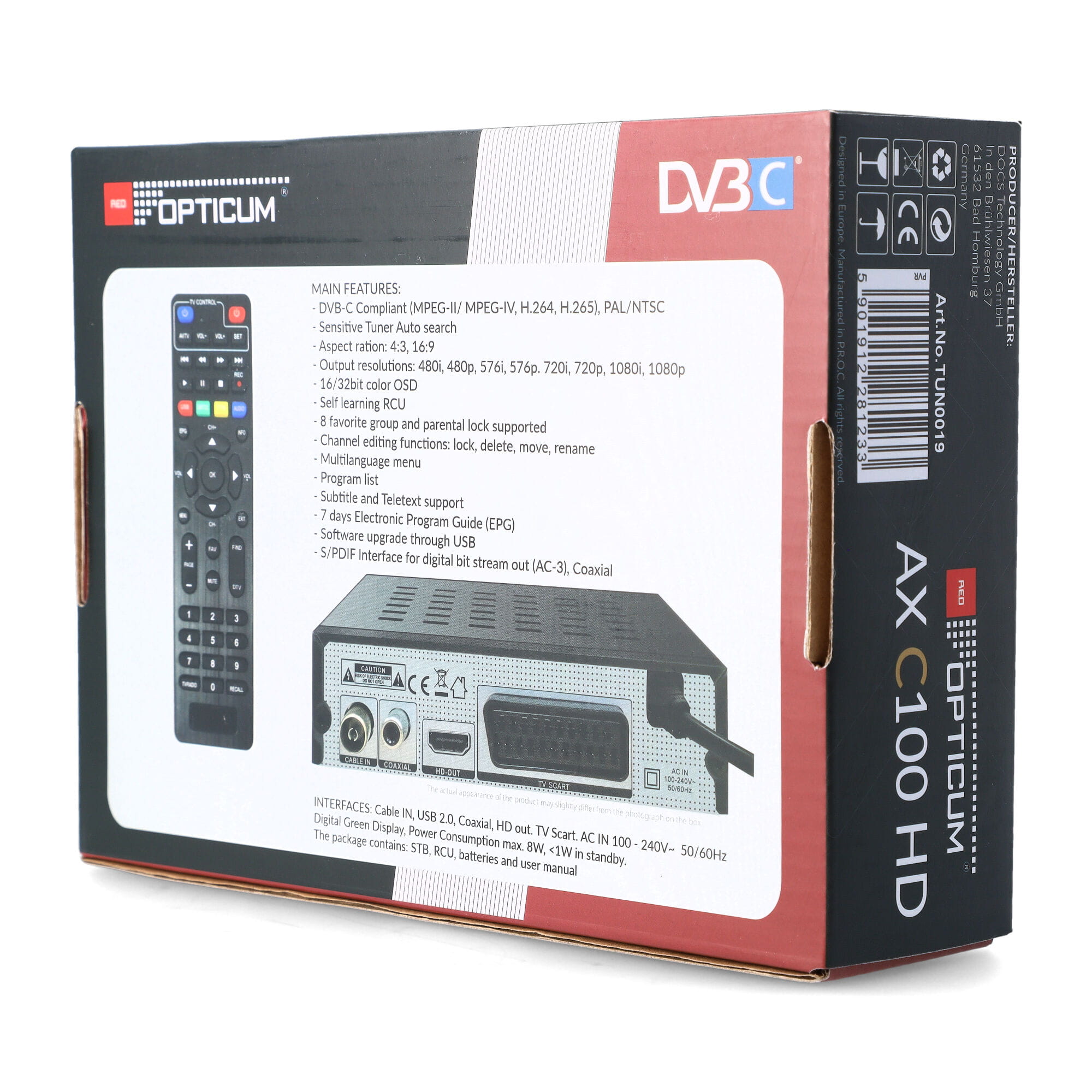

Cable Receiver Opticum AX C100 HD DVB-C – PVR
The Opticum AX C100 HD receiver is an excellent choice for anyone who values high-quality picture and sound in cable television networks. With Full HD support, full compatibility with the DVB-C standard, and multifunctional connectors, it ensures convenience and modernity in everyday viewing. The device stands out with its intuitive menu, EPG function, and the ability to record programs or pause live broadcasts (PVR and Timeshift) via the USB port. It is a reliable, energy-efficient piece of equipment at an affordable price, guaranteeing stable performance and a great television experience.
Description
A modern cable receiver designed for digital TV users who value high image quality and reliability. The device supports both standard definition (SD) and high definition (HD) channels, ensuring stable signal reception in DVB-C cable networks and broad compatibility with current broadcasting standards.
With support for MPEG-2 and MPEG-4 (H.264) formats, you can enjoy smooth video and clear audio. Supported image resolutions – up to Full HD 1080p – guarantee an excellent visual experience on modern televisions, while the Auto Scan function ensures quick and easy device configuration.
The receiver is equipped with an Electronic Program Guide (EPG), allowing you to check schedules and plan recordings of your favorite shows. An intuitive, multi-language menu enables easy creation of favorite channel lists, channel editing, and parental control, providing full authority over available content.
The device offers extensive multimedia features via the USB port. It supports program recording (PVR), Timeshift (pausing and rewinding live TV), and playback of video, music, and photo files from external storage media. Additionally, the receiver supports DVB subtitles and teletext.
Thanks to its energy-saving mode, the receiver is environmentally friendly and cost-effective – consuming less than 1 W in standby mode, which minimizes operating costs.
Key product features:
- SD and HD support (MPEG-2, MPEG-4 / H.264)
- Full compatibility with the DVB-C standard
- Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Full HD
- PVR (recording) and Timeshift function via USB
- Electronic Program Guide (EPG)
- Favorite channel lists and parental control
- Support for subtitles, teletext, and multiple audio tracks
- Low standby power consumption (below 1 W)

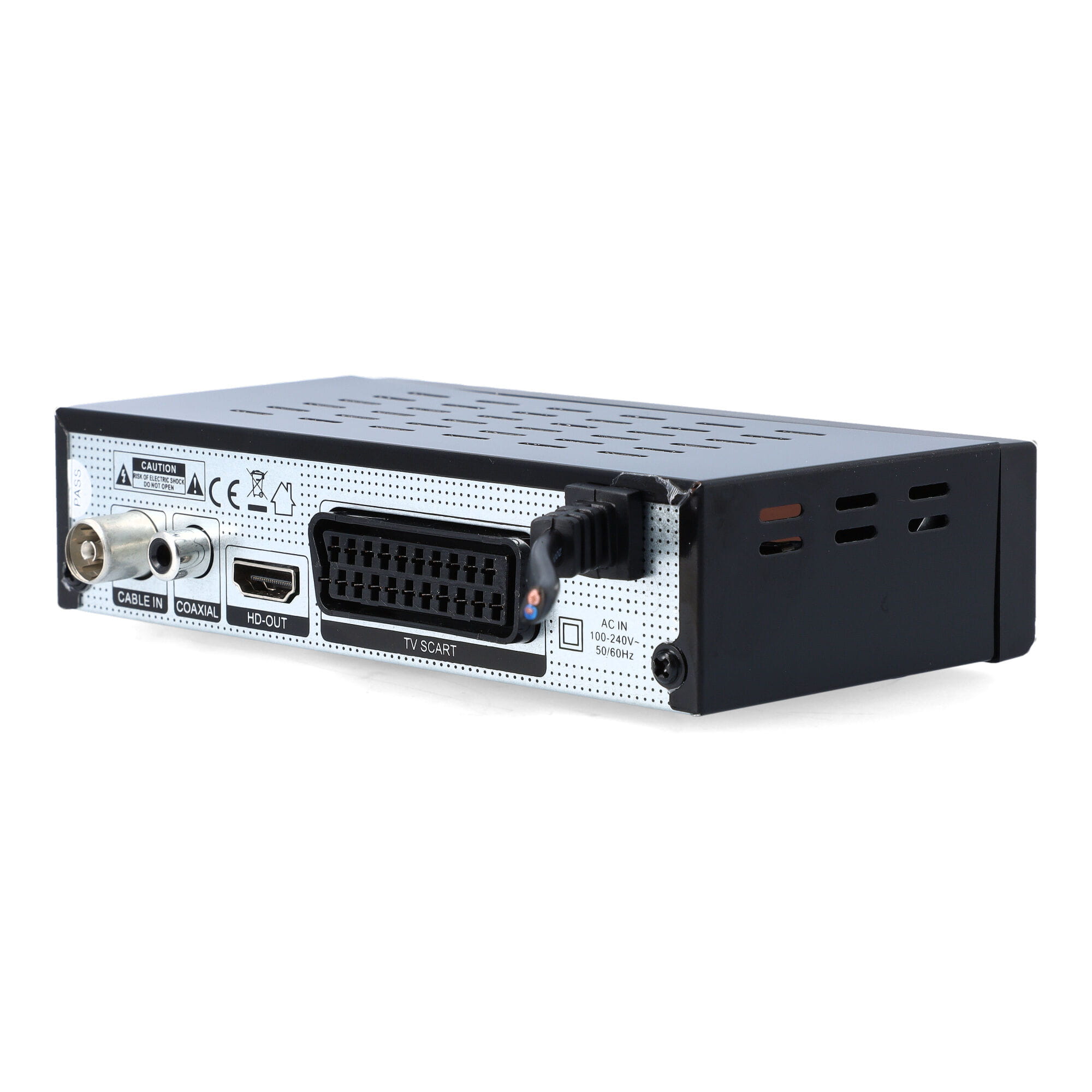

Connectors:
- ANT IN – cable signal input
- HDMI – high-quality digital video and audio
- USB 2.0 – program recording, multimedia playback, and software updates
- Coaxial – digital audio output for sound systems
- SCART – compatibility with older television models
It is an ideal choice for those seeking a robust and easy-to-use cable TV receiver that combines advanced multimedia functions with excellent image quality.
Here is the English translation for the Opticum AX C100 HD, maintaining the requested HTML formatting:
Hardware Specification
Tuner and Decoder
DVB-C Tuner: Supports the digital cable television standard, offering stable channel reception in high quality. Compatibility with MPEG-2 and MPEG-4 (H.264): Ensures smooth playback of a wide range of video and audio formats used in cable networks.
Video and Audio Outputs
HDMI: Enables high-resolution video and audio transmission to modern TVs and monitors.
SCART: Allows connection to older TVs or AV devices.
Coaxial Digital Audio Output: For connecting high-quality sound systems or home theaters.
Display and Indicators
4-digit LED display: Clearly shows the channel number and the current time in standby mode.
Construction and Design
Compact housing: The receiver features a solid and aesthetic design that blends perfectly with home RTV equipment.
Ventilation openings: Ensure proper heat dissipation for stable device performance.

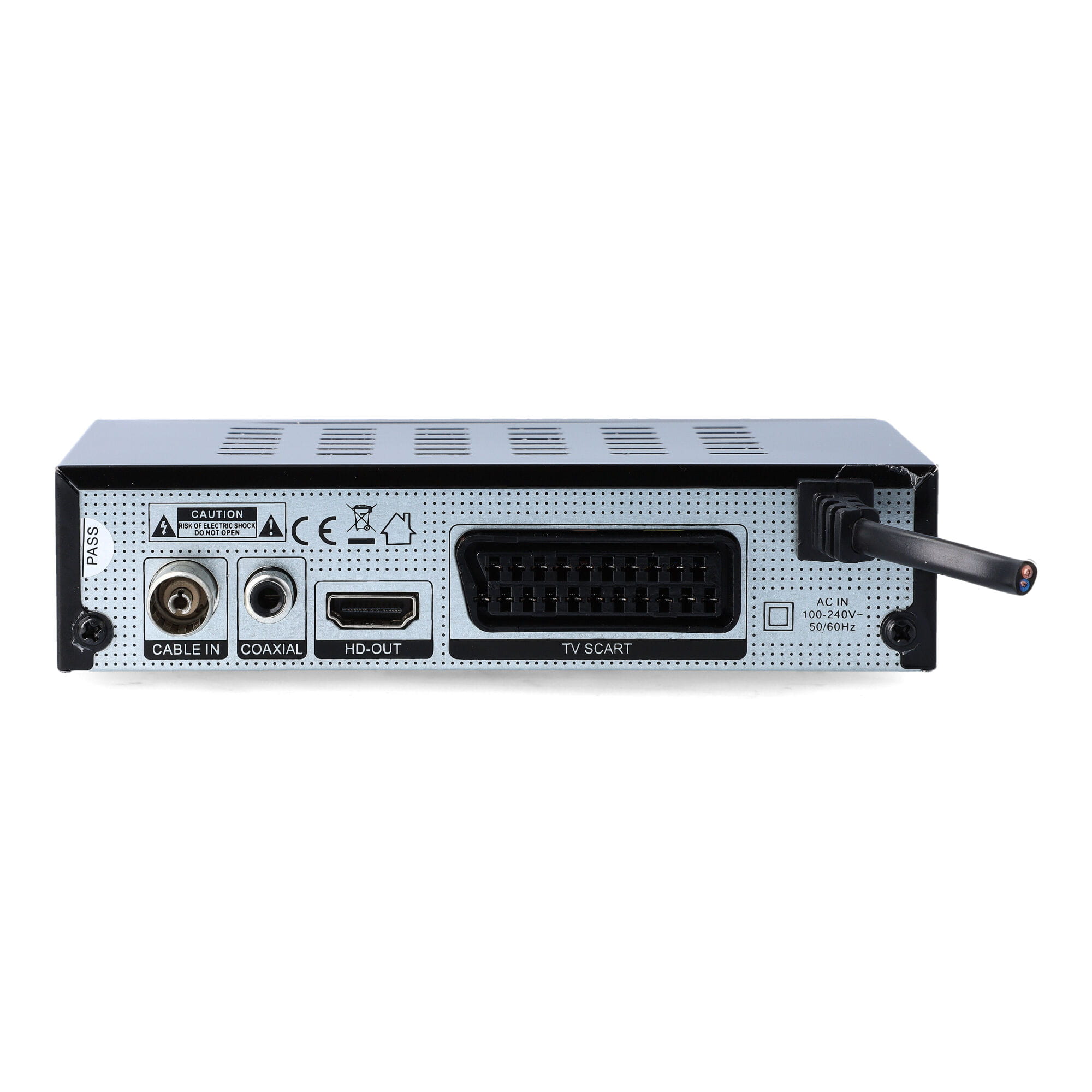

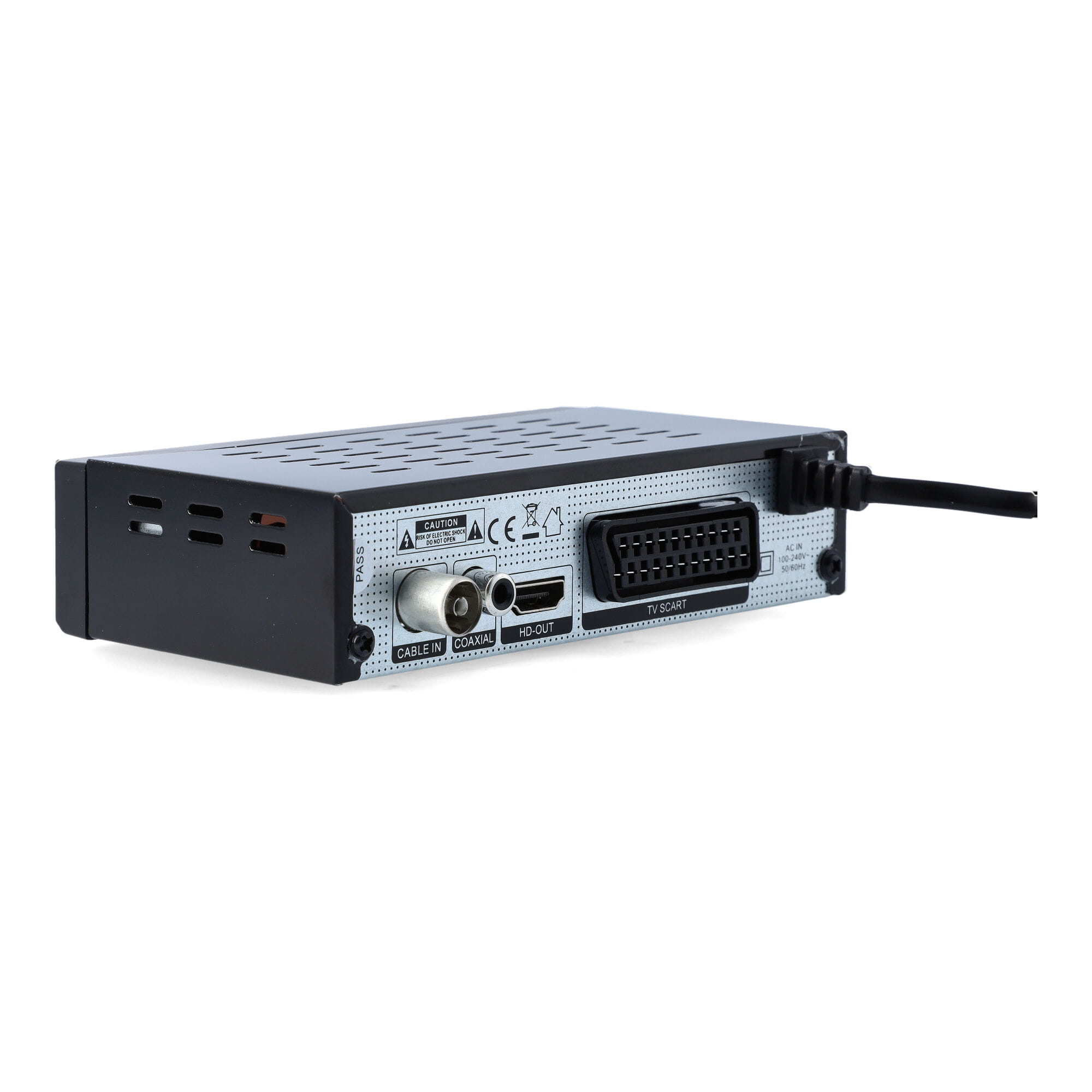

Outputs
ANT IN (Antenna Input)
Used to connect the signal from the cable TV network. This input receives a digital signal, which is then processed by the receiver into SD or HD quality video and audio.
USB (USB Port)
Allows for the connection of external devices such as flash drives or hard drives. It can be used for multimedia playback (movies, music, photos) or recording TV programs (PVR). It also allows for software updates.
HDMI (HDMI Output)
Used to transmit high-quality digital video and audio to the TV. It guarantees the best Full HD 1080p image quality, ideal for modern TV sets.
COAXIAL (Digital Audio Output)
Transmits a digital audio signal to an external sound system, such as a receiver. It allows for high-quality surround sound.
SCART OUT (SCART Output)
Used to transmit analog video and audio to older TV models that do not have an HDMI connector.
Software Features
EPG (Electronic Program Guide)
Allows you to browse TV program information, making it easier to plan viewing and check program descriptions.
Favorite Channel List Editor
Enables the creation of custom channel lists, providing the user with quick access to their most-watched stations.
PVR and Timeshift
The recording function (PVR) allows you to save favorite programs to a USB drive, while Timeshift lets you pause and rewind live broadcasts.
Parental Lock
Allows for restricting access to selected channels, ensuring control over content available to children.
Multimedia Player
Enables the playback of files such as movies, music, or photos directly from a connected USB storage device.
Subtitle and Teletext Support
Supports the display of subtitles for movies and enables the use of teletext functions.
Automatic Standby Mode
The receiver automatically switches to standby mode after a period of inactivity, significantly saving electrical energy.
Software Update via USB
Users can easily update the device's system using the USB port and the appropriate software file.
