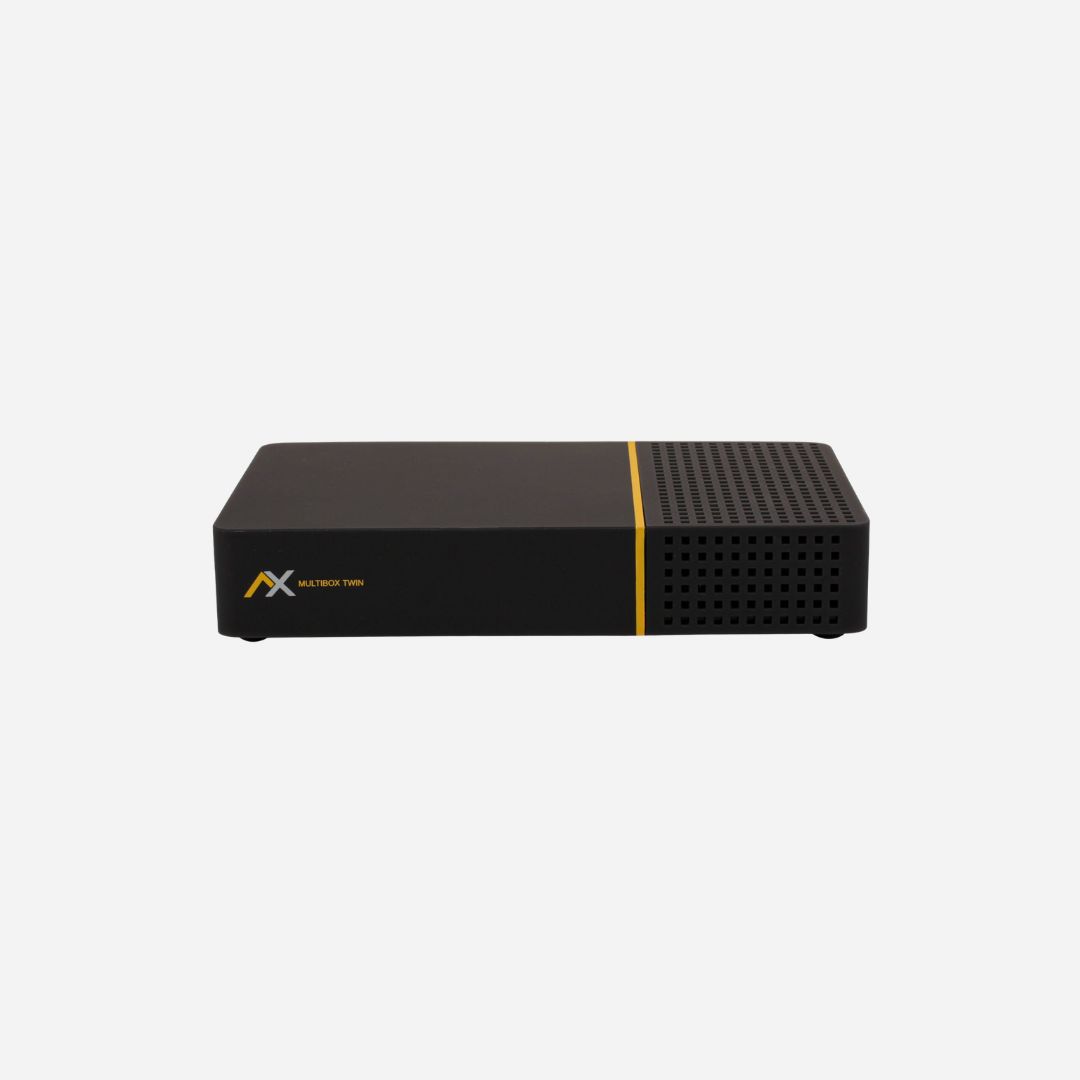

Digital satellite receiver AX MULTIBOX 4K LINUX TWIN 2 X DVB-S2X WIFI
The AX Multibox Twin digital satellite receiver, equipped with dual DVB-S2 tuners, allows for the reception of channels in both high and low resolutions (4K, FHD, HD, and SD). All you need is a television and a satellite dish with a universal LNB. The factory-preprogrammed channel list can be easily modified using the multi-language menu. The remote control, including batteries, is included in the package.
Description
The modern AX Multibox Twin satellite receiver is an advanced hybrid device designed for demanding users, offering support for 4K UHD (2160p) resolution. A unique feature of the device is the Multiboot system, which allows for the use of two independent operating systems: Linux (Enigma 2) and Android 7.0. Thanks to its efficient quad-core ARM Cortex A53 processor clocked at 4x 1.6 GHz, the decoder ensures lightning-fast operation and crystal-clear images with support for HDR/HDR10 technology.
The device supports modern video compression standards H.265/HEVC and H.264, guaranteeing smooth playback of content in the highest quality. Being equipped with two DVB-S2 tuners allows for stable reception of a wide range of satellite channels, while the intuitive, multi-language on-screen menu significantly simplifies daily operation and the configuration of editable channel lists.
The receiver offers extensive network and communication functions, such as the OpenWebif interface, support for DLNA, FTP, and NFS protocols, and 10/100Mbit LAN connectivity. An additional advantage is the ability to connect a WiFi network card via the USB port, allowing for wireless use of internet resources and the home network.
Thanks to the USB 3.0 and USB 2.0 ports, as well as an SD card slot, the device serves as a powerful multimedia center. It supports PVR recording functions, Timeshift (pausing and rewinding live TV), and playback of video and music files via the built-in Multimedia player. Advanced users will appreciate the support for DiSEqC 1.0/1.1/1.2 and USALS standards.
The receiver is enclosed in a compact and elegant housing with dimensions of 160 x 105 x 27 mm. The entire set is completed by an ergonomic remote control, which ensures comfortable navigation through the functions of both operating systems.
Key Product Features:
- Support for 4K UHD (2160p) resolution and HDR/HDR10 standards
- Dual operating systems: Linux Enigma 2 and Android 7.0 (Multiboot)
- Efficient 4x 1.6 GHz processor (15,000 DMIPS) and 1 GB DDR3 RAM
- Dual satellite tuners 2x DVB-S2
- Support for modern H.265/HEVC compression
- Built-in SD card reader and USB 3.0 & 2.0 ports
- Network functions: OpenWebif, DLNA, FTP, NFS
- PVR recording, Timeshift, and EPG electronic program guide
Connectors:
- LNB 1 & LNB 2 – signal inputs from two satellite tuners
- HD (HDMI 2.0) – digital video and audio output in 4K quality
- USB 3.0 (rear) & USB 2.0 (side) – high-speed data transfer and media connection
- SD card slot – memory card slot for additional multimedia
- ETHERNET (LAN) – stable internet connection
- OPTICAL (S/PDIF) – digital audio output for sound systems
- AV OUT – analog audio/video output
The AX Multibox Twin receiver is the ideal solution for those seeking an uncompromising “all-in-one” device, combining the flexibility of the Android system with the professional capabilities of the Linux system in 4K standard.
Hardware Specification
Processor and Memory
At the heart of the device is a high-performance ARM Cortex A53 (ARMv7) CPU clocked at 4x 1.6 GHz (15,000 DMIPS), supported by a Mali 450 GPU. The receiver features 1 GB of DDR3 RAM and 8 GB of eMMC Flash memory, ensuring smooth operation of both Linux and Android systems.
Tuner and Decoder (2x DVB-S2)
The receiver is equipped with a dual DVB-S2 satellite tuner, enabling the reception of channels in 4K/UHD (2160p) quality. It supports modern H.265/HEVC compression and HDR/HDR10 technology, guaranteeing excellent color depth and contrast.
Video and Audio Outputs
HDMI 2.0: A digital output providing image transmission in the highest 4K UHD resolution.
S/PDIF (Optical): An optical audio output for transmitting digital sound to home theater systems.
AV OUT: An analog output (audio CVBS/R-L) for compatibility with audio systems and older TV sets.
Communication and Interfaces
The device features an Ethernet port (LAN 10/100Mbit) for a stable internet connection and supports WiFi connectivity via a dedicated USB port. An SD card slot is located on the side of the housing.
Outputs and Ports
LNB 1 & LNB 2 (Satellite Inputs)
Two independent satellite signal inputs supporting DiSEqC 1.0/1.1/1.2 and USALS standards.
USB 3.0 & USB 2.0
The USB 3.0 port (rear) provides high-speed data transfer, while the USB 2.0 port (side) is ideal for connecting accessories such as a keyboard, mouse, or WiFi adapter.
ETHERNET (LAN)
An RJ-45 socket providing access to network functions such as the OpenWebif interface, DLNA, FTP, and NFS.
Software Features
Multiboot (Dual OS)
A unique feature that allows the device to operate under two operating systems: Linux (Enigma 2) and Android 7.0, giving the user access to the best features of both platforms.
EPG and Channel Editor
An extensive electronic program guide and the ability to create and edit unlimited lists of favorite channels.
PVR and Timeshift
Full support for recording programs to external media (USB/SD) and the function to pause and rewind live TV.
Multimedia Player
An advanced player supporting a wide range of video and audio formats, including 4K UHD and HDR10 standards.
Network Functions
Access to the OpenWebif interface (management via browser), support for DLNA (media sharing within the home network), and FTP and NFS protocols.
