Hybrid Reciver DVB-T2/C Opticum AX LION NS
A hybrid receiver supporting the latest video compression standard – H.265/HEVC. This hybrid terrestrial/cable TV receiver provides crystal-clear, interference-free image reception. All you need is a television and a DVB-T antenna or a cable signal outlet. The receiver features a user-friendly, multi-language on-screen menu and allows for multimedia file playback via the USB port.
Download
Description
The modern Opticum AX Lion NS hybrid receiver is an advanced device designed to receive terrestrial television in the latest DVB-T2 H.265/HEVC standard as well as DVB-C cable television. Thanks to a modern processor and 10-bit color depth support, the decoder provides crystal-clear, interference-free images and broad compatibility with current broadcasting standards.
The device supports a wide range of formats, including MPEG-1/2/4 and H.265/HEVC, allowing you to enjoy smooth images in Full HD 1080p high resolution. Equipped with a clear, 4-digit display and an intuitive, multi-language on-screen menu (OSD), the receiver is extremely simple for daily operation and configuration.
The receiver offers access to up to 2000 TV and radio channels, and the parental lock function allows for effective management of access to selected content and menus. An additional advantage is the self-learning remote control, which enables convenient control of the most important functions of both the TV and the decoder using a single device.
Thanks to the USB 2.0 port, the device serves as an extensive multimedia player, supporting FAT16/32 and NTFS file systems. It supports the PVR function (program recording), teletext, subtitles, and multiple audio tracks, significantly increasing user comfort.
The receiver also focuses on energy efficiency – it consumes less than 1W in standby mode. Additionally, the automatic standby function activates after 3 hours of inactivity, making it an environmentally friendly device.
Key Product Features:
- Support for DVB-T2 H.265/HEVC and DVB-C standards
- High resolution Full HD 1080p (10-bit color depth)
- Support for video formats: MPEG-1, MPEG-2, MPEG-4, H.264, H.265, VC1, VP8
- Multimedia Player and PVR functions via USB 2.0 port
- Self-learning remote control (TV Control)
- Memory for up to 2000 TV and radio channels
- Parental lock for channels and menu
- Low power consumption (below 1W in standby mode)
Connectors:
- RF IN – terrestrial/cable signal input
- HD-OUT (HDMI) – digital HD video and audio output
- USB 2.0 – (on front panel) for recording and media playback
- COAXIAL – digital audio output
- SCART – analog output for older TV models
The Opticum AX Lion NS receiver is the ideal solution for those looking for a universal decoder that combines support for new terrestrial television with multimedia functions in a compact and efficient form.
Hardware Specification
Tuner and Decoder
DVB-T2/C Hybrid Tuner: Supports the latest digital terrestrial and cable TV standards, offering crystal-clear reception. H.265/HEVC (10-bit) Compatibility: Ensures smooth playback of modern video formats in Full HD 1080p resolution and excellent color reproduction.
Video and Audio Outputs
HD-OUT (HDMI 1.4): Enables high-quality digital video and audio transmission to modern televisions.
SCART (CVBS, RGB): Allows connection to older TV sets via an analog interface.
Coaxial Digital Audio Output: Used to transmit audio to external sound systems or AV receivers.
Display and Indicators

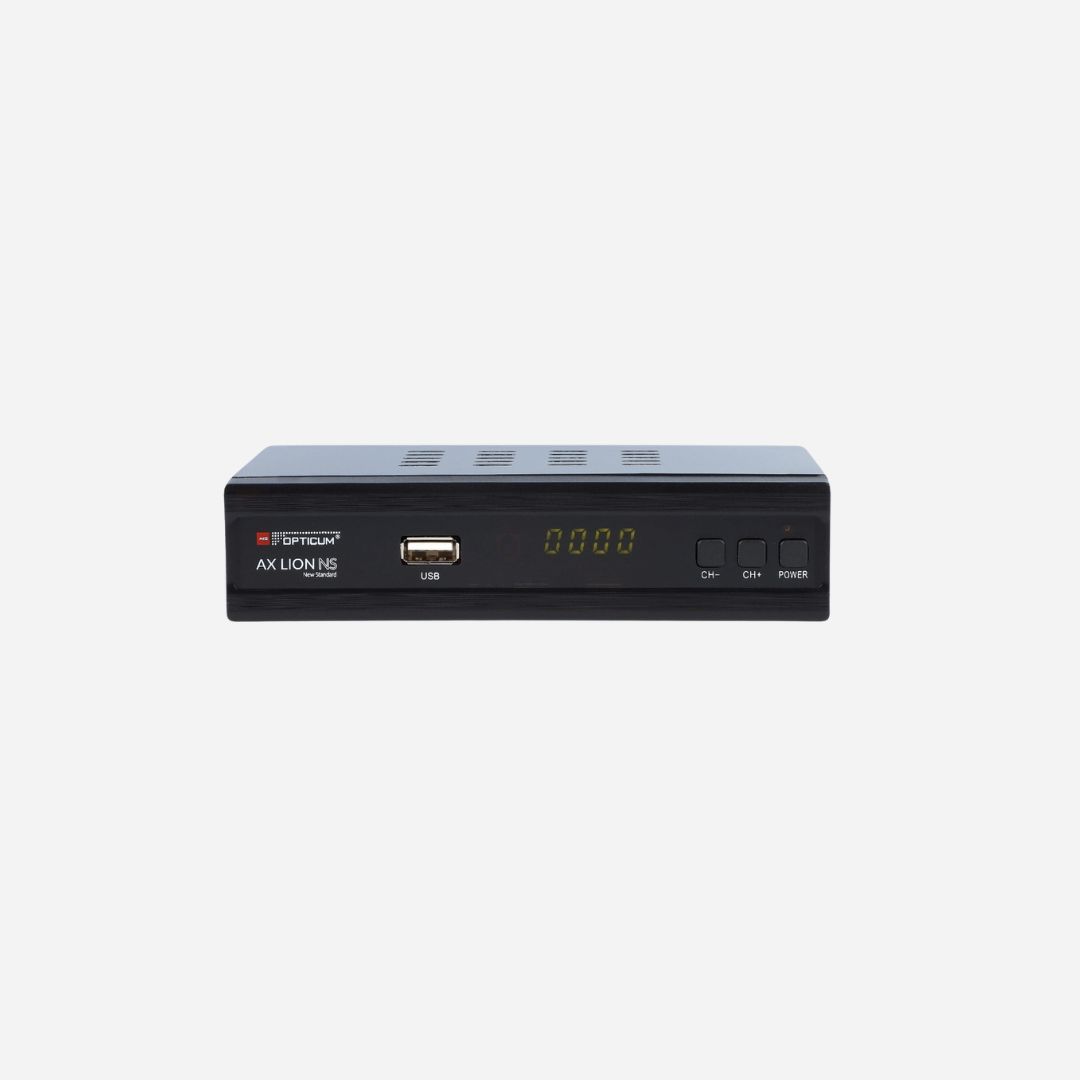

4-digit LED Display: Clearly indicates the selected channel number and displays the current time in standby mode.
Build and Design
Compact Housing: With dimensions of 13.3 x 9.5 x 3.2 cm, the device features solid craftsmanship and a discreet appearance.
Cooling System: Top and side ventilation openings ensure optimal air circulation, guaranteeing stable performance of the MT2230-M2 processor.
Outputs
RF IN (Antenna Input)
The primary signal input for connecting a terrestrial antenna or a cable TV signal to receive digital channels.
USB 2.0 (Multimedia Port)
The front-panel port supports FAT16/32 and NTFS file systems. It is used for recording programs, playing multimedia, and updating firmware.
HD-OUT (HDMI Output)
Provides the highest quality Full HD signal transmission. This is the preferred connection for modern LED, LCD, and plasma TVs.
COAXIAL (Digital Audio Output)
An S/PDIF type output that allows for the transmission of clean, digital audio signals to home theater systems.
SCART (Euroconnector Output)
A traditional analog connector that ensures the decoder remains compatible with almost any older television model.
Software Features
EPG (Electronic Program Guide)
An interactive program list allowing users to check the current schedule and plan automatic channel switching or recordings.
Channel List Editor
The receiver allows for programming up to 2000 channels and creating custom favorite lists for much easier navigation.
PVR and Timeshift
The Personal Video Recorder function enables recording programs to an external USB memory. Timeshift allows you to pause and rewind live TV.
Parental Lock
A security feature that allows blocking access to selected channels and menu settings using a PIN code.
Media Player
The built-in decoder supports playback of a wide range of files (including MP3, video, photos) directly from USB-connected storage.
Subtitle and Teletext Support
Full support for teletext and multi-language on-screen subtitles, which is essential for watching movies in their original language.
Auto Standby Mode
An intelligent power management system that automatically turns off the device after 3 hours of inactivity (configurable).

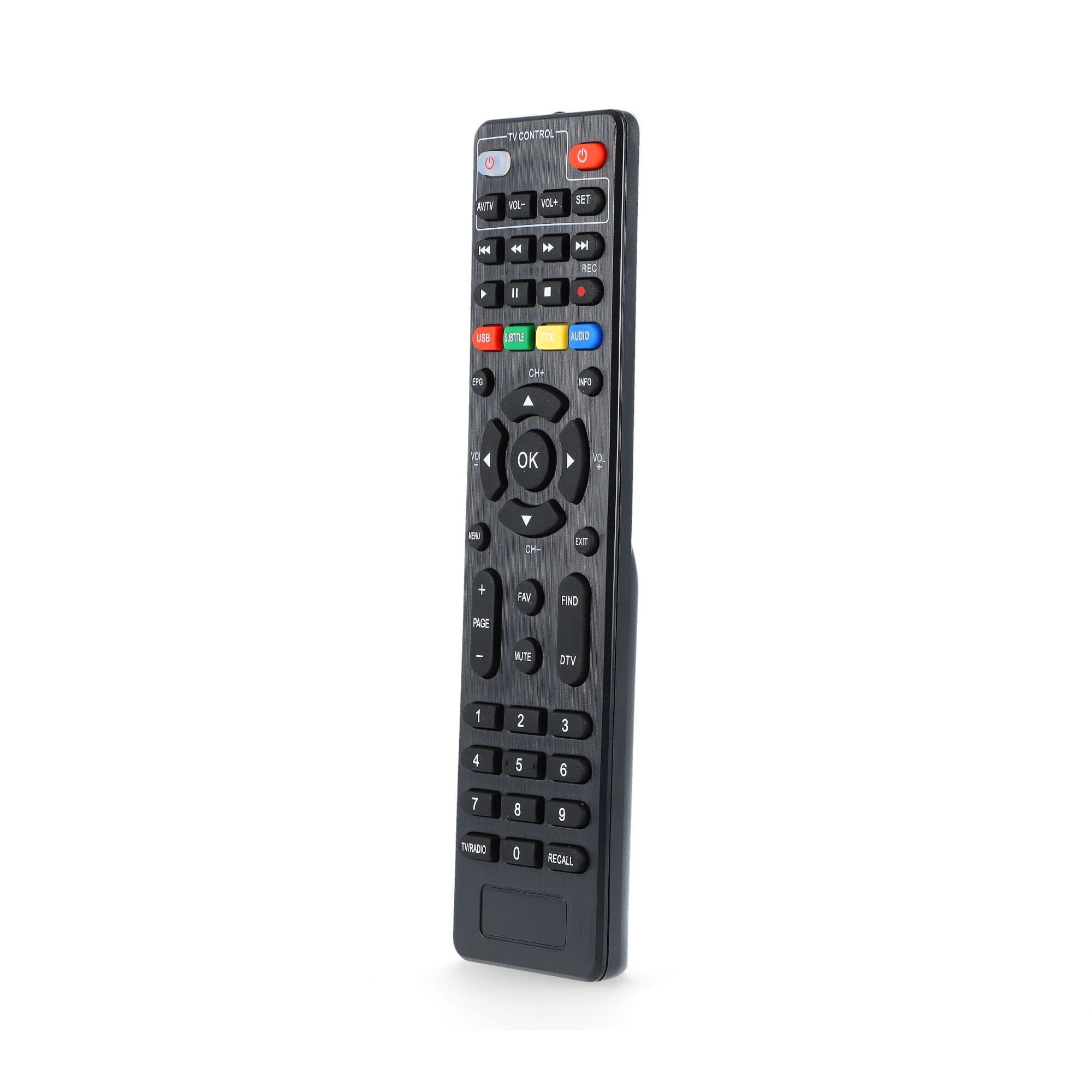

Self-learning Remote Control (TV Control)
The remote control features a programmable buttons section that can take over the functions of your TV remote (e.g., power, volume).
