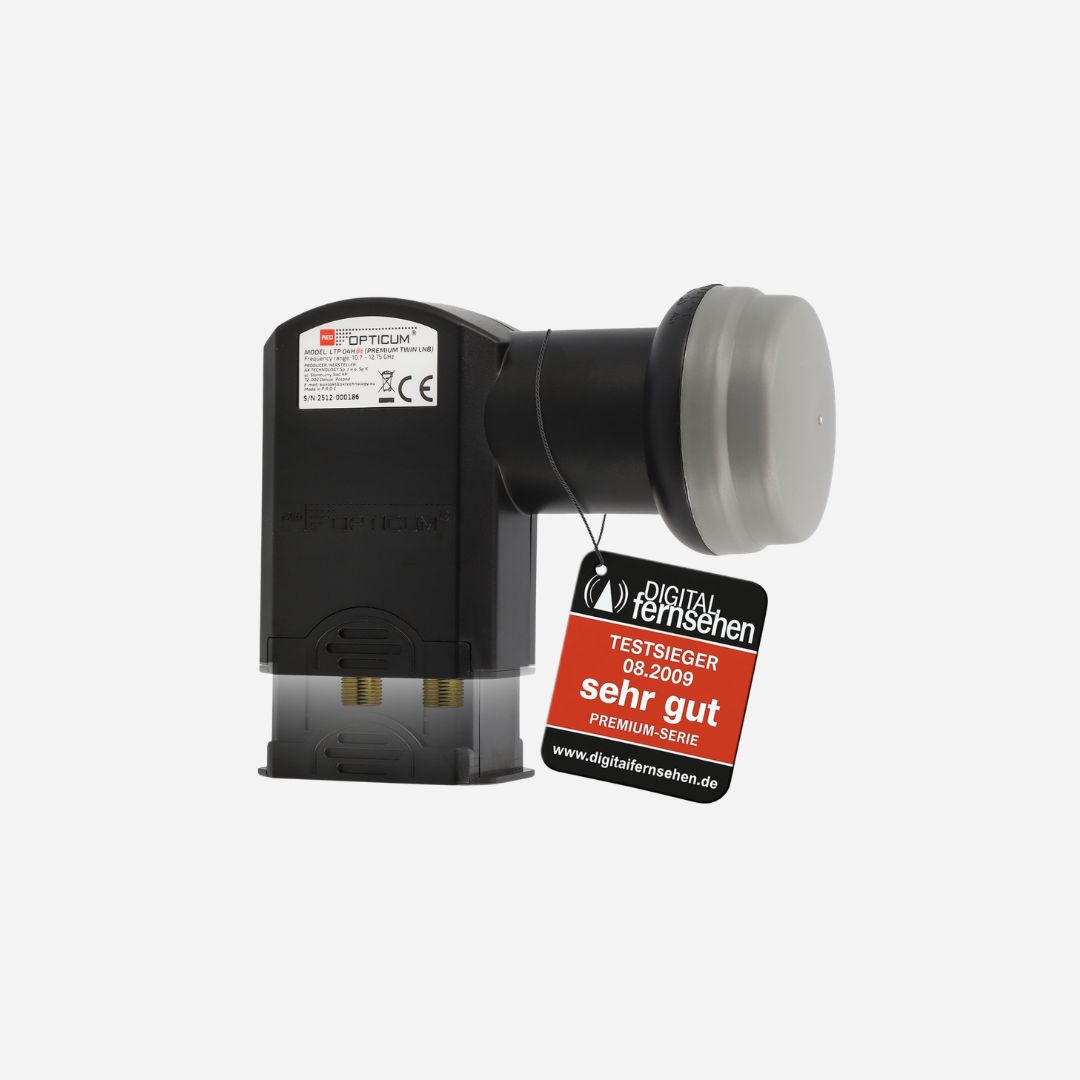

Satellite LNB OPTICUM RED 04hBE BLACK Series
The OPTICUM RED 04hBE satellite LNB series is a professional solution designed for demanding users, ensuring crystal-clear signal reception in the highest resolutions. Thanks to the use of innovative technology and high-quality craftsmanship, these devices feature an exceptionally low noise figure across the entire frequency range.
Download
Description
The OPTICUM RED 04hBE satellite LNB series is a professional solution designed for demanding users, ensuring crystal-clear signal reception in the highest resolutions. Thanks to the use of innovative technology and high-quality craftsmanship, these devices feature an exceptionally low noise figure across the entire frequency range.
A key advantage of the series is the built-in LTE filter, which effectively eliminates interference from mobile networks, ensuring signal stability. The LNBs are fully adapted for operation in extreme outdoor conditions – their construction is resistant to moisture, frost, and heat, while a special pull-down weather cover protects the F-type connectors from the elements.
The Opticum RED BLACK line of LNBs has been designed for diverse installations, offering variants: Single, Twin, Quad, Quattro, and Octo. This allows you to easily match the model to installations ranging from one to eight independent receivers, as well as to complex collective systems based on multiswitches.
Key product features:
- Image Standard: Full compatibility with 4K UHD, Full HD, and 3D technologies.
- LTE Filter: Effective protection against LTE frequency interference for undisturbed reception.
- Extreme Durability: Waterproof devices, insensitive to extreme temperatures (from -40°C to +60°C).
- High Precision: Very low noise figure (0.1 dB typ.) guarantees the highest signal quality.
- Easy Installation: Standard 40 mm feed diameter and gold-plated connectors (Premium Quality) for optimal data transmission.
- Proven Quality: The series was awarded the “Testsieger” (Test Winner) title by independent industry magazines.
Series variants:

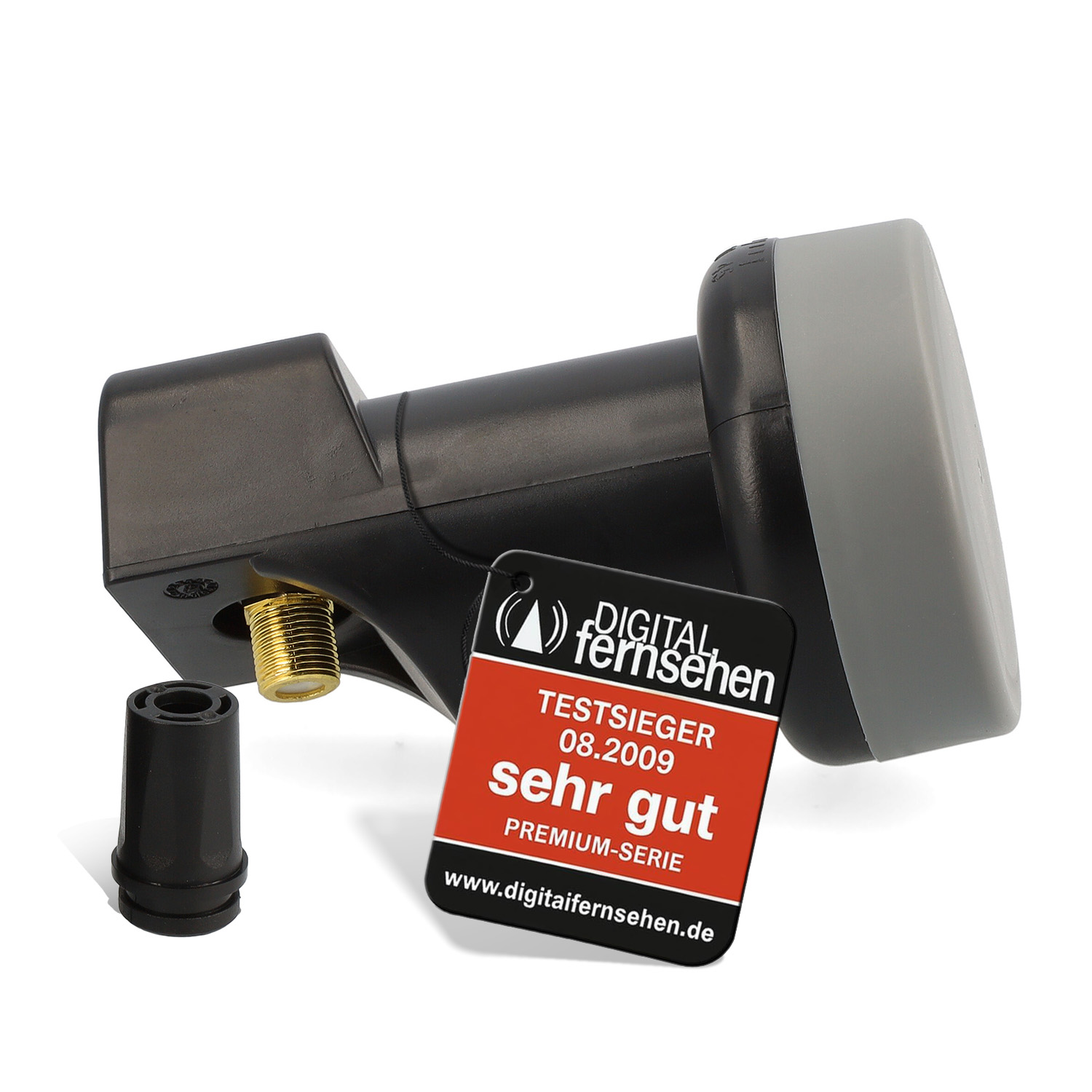

- Single (LSP 04HBE): Connection for 1 user.

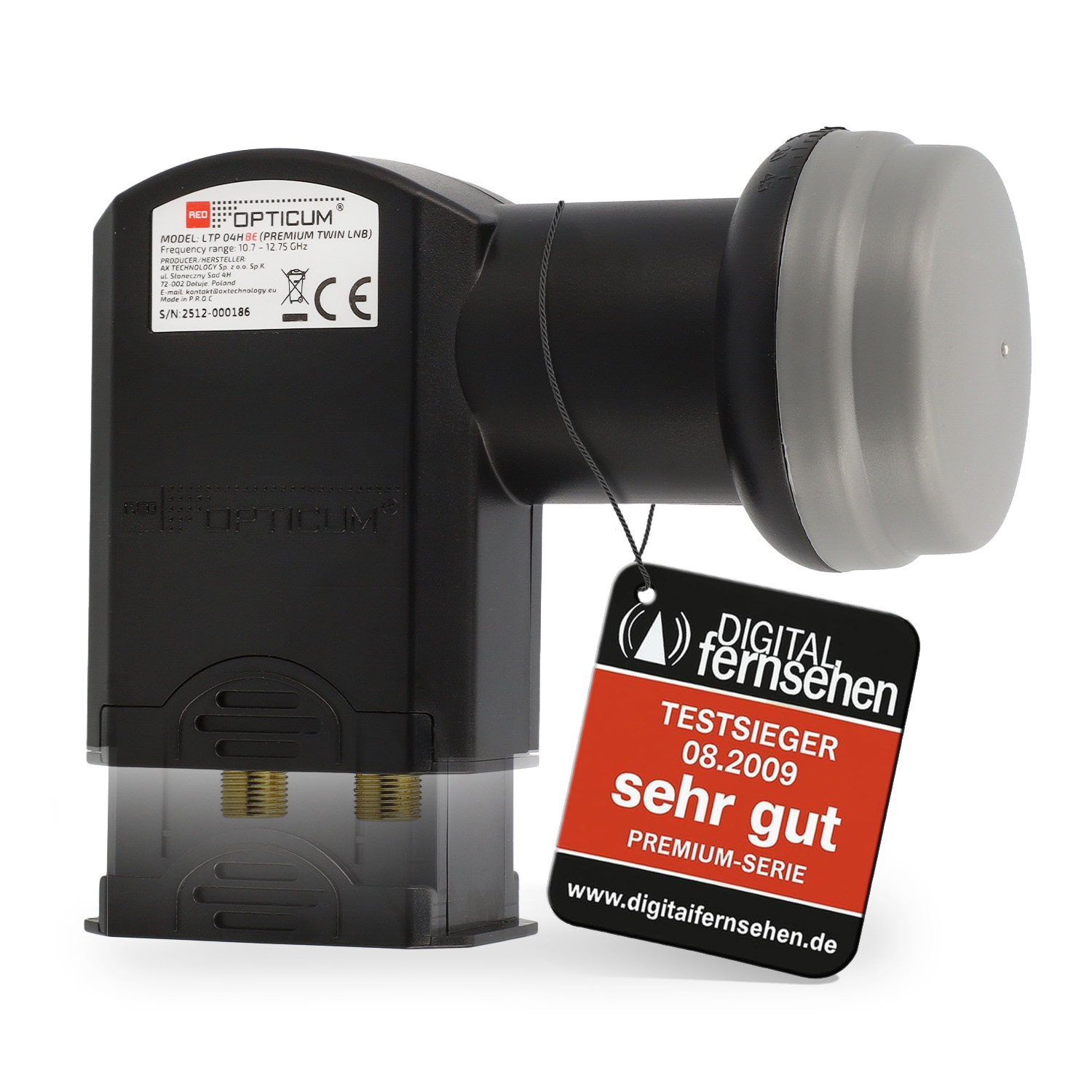

- Twin (LTP 04HBE): Connection for 2 independent users.

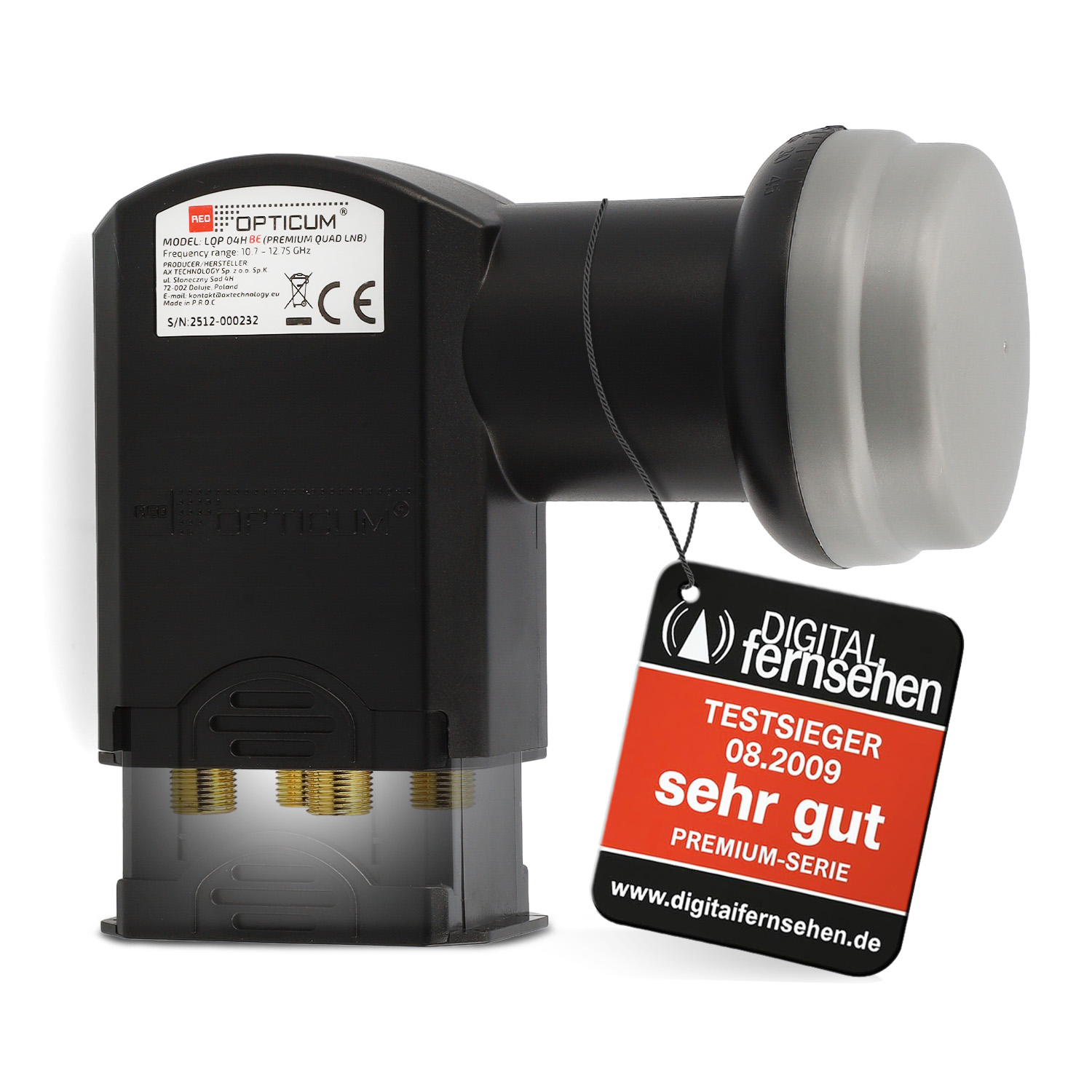

- Quad (LQP 04HBE): Connection for 4 independent users.

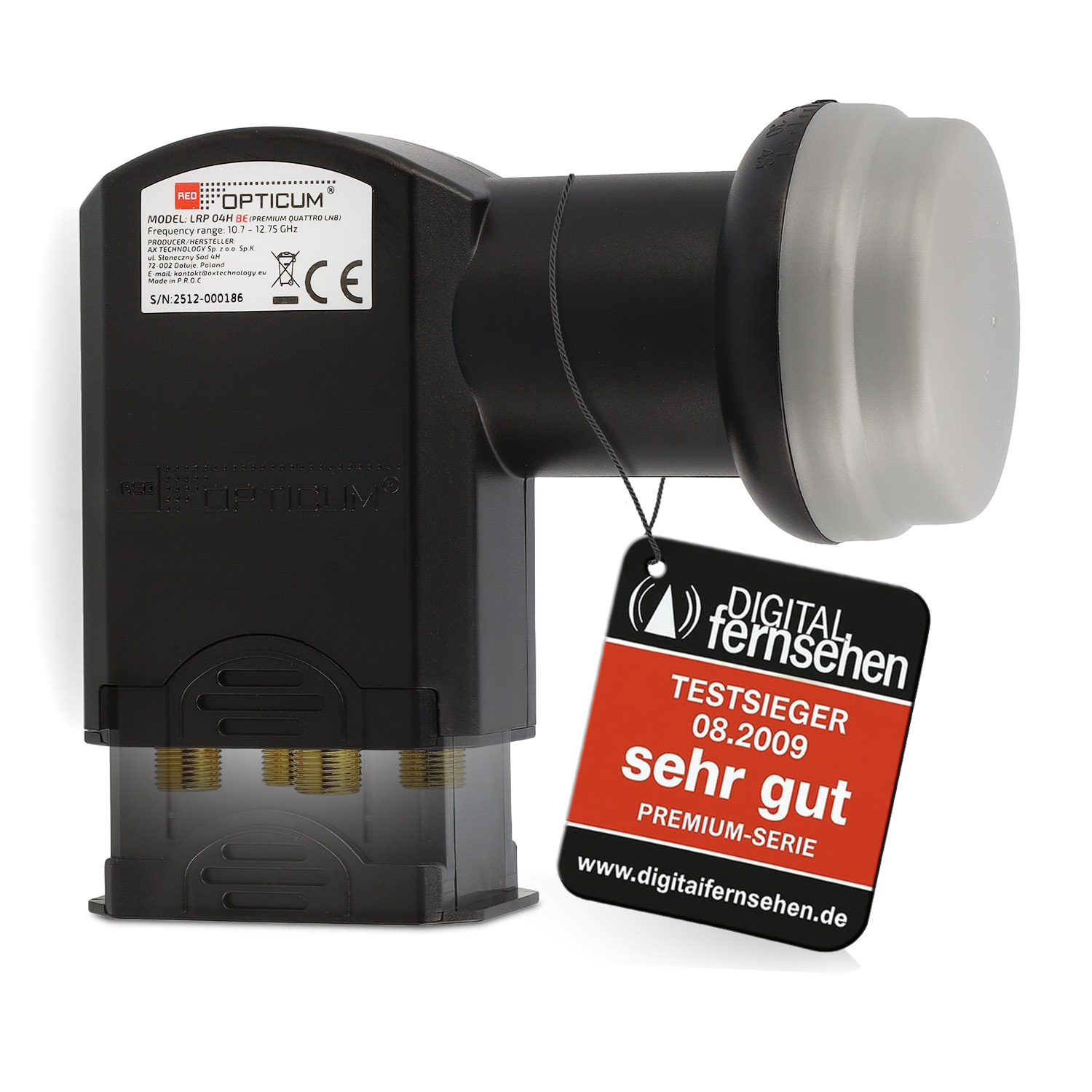

- Quattro (LRP 04HBE): Designed exclusively for use with a multiswitch in collective installation systems.

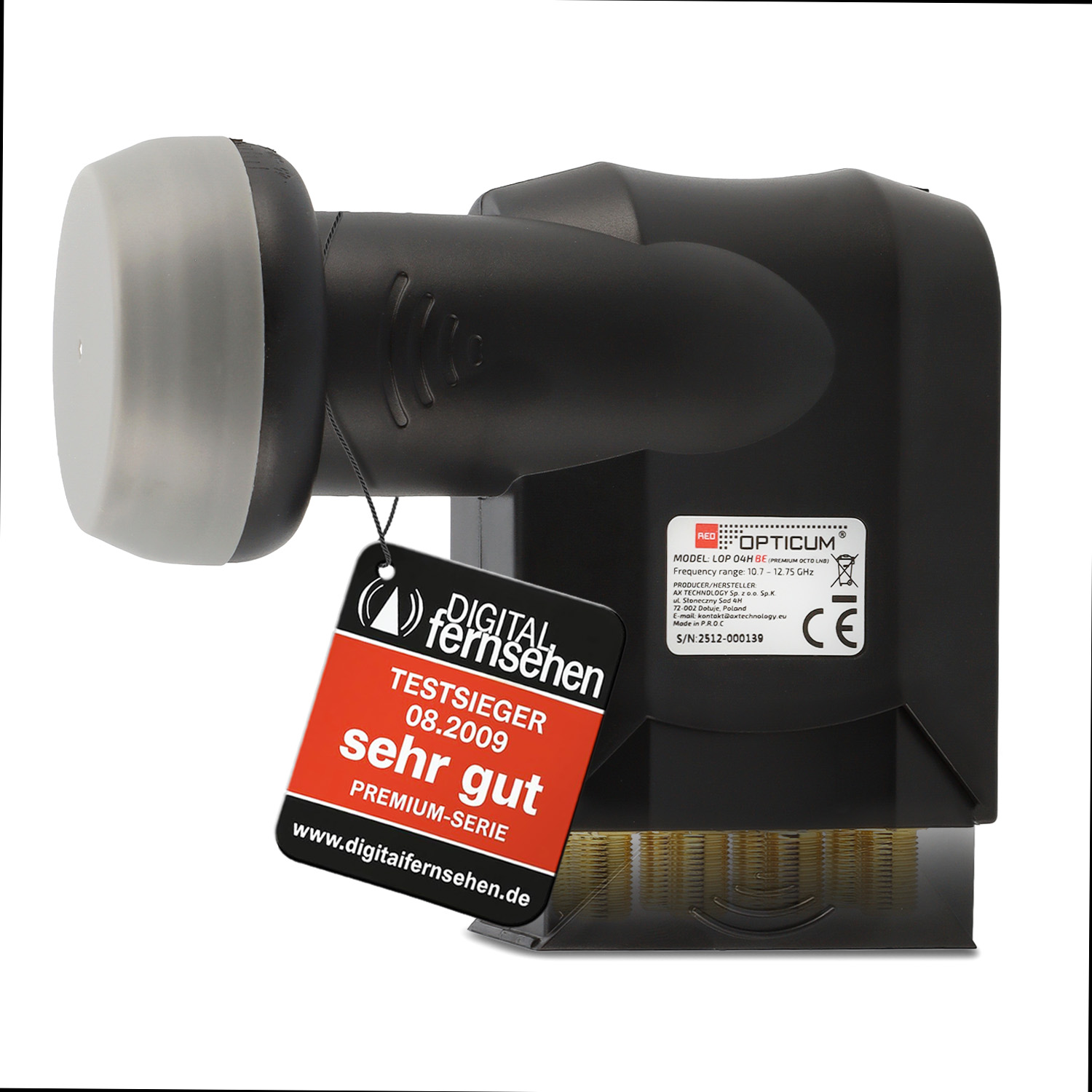

- Octo (LOP 04HBE): Connection for 8 independent users.
Technical specification:
- Noise Figure: 0.1 dB (typ).
- Input Frequency: 10.7 – 12.75 GHz.
- Polarization: Linear H/V.
- Feed Diameter: 40 mm.
Opticum RED BLACK series LNBs are a reliable choice for those seeking uncompromising image quality and durability for their satellite installation at an affordable price.
TECHNICAL SPECIFICATIONS
| Parameter | LSP 04HBE Single | LTP 04HBE Twin | LRP 04HBE Quattro | LQP 04HBE Quad | LOP 04HBE Octo |
|---|---|---|---|---|---|
| Number of outputs | 1 | 2 | 4 (V/L, V/H, H/H, H/L) | 4 | 8 |
| Connectors | F-type (Gold-plated) | F-type (Gold-plated) | F-type (Gold-plated) | F-type (Gold-plated) | F-type (Gold-plated) |
| LO (Low) | 9.75 GHz | 9.75 GHz | 9.75 GHz | 9.75 GHz | 9.75 GHz |
| LO (High) | 10.6 GHz | 10.6 GHz | 10.6 GHz | 10.6 GHz | 10.6 GHz |
| Input frequency range | 10.7–12.75 GHz | 10.7–12.75 GHz | 10.7–12.75 GHz | 10.7–12.75 GHz | 10.7–12.75 GHz |
| Output frequencies (Low) | 950–1950 MHz | 950–1950 MHz | 950–1950 MHz | 950–1950 MHz | 950–1950 MHz |
| Output frequencies (High) | 1100–2150 MHz | 1100–2150 MHz | 1100–2150 MHz | 1100–2150 MHz | 1100–2150 MHz |
| Noise figure | 0.1 dB (typ) | 0.1 dB (typ) | 0.1 dB (typ) | 0.1 dB (typ) | 0.1 dB (typ) |
| Polarization | Linear H/V | Linear H/V | Linear H/V | Linear H/V | Linear H/V |
| Waterproof | Yes (cap) | Yes (cap) | Yes (cap) | Yes (cap) | Yes (cap) |
| Connector protection | Pull-down cover | Pull-down cover | Pull-down cover | Pull-down cover | Pull-down cover |
| Feed diameter (mount) | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Operating temperature | -40°C to +60°C | -40°C to +60°C | -40°C to +60°C | -40°C to +60°C | -40°C to +60°C |
| LTE Filter | Yes | Yes | Yes | Yes | Yes |
| Compatibility | 4K / UHD / Full HD | 4K / UHD / Full HD | 4K / UHD / Full HD | 4K / UHD / Full HD | 4K / UHD / Full HD |
Additional information
| model | Single (LSP 04HBE), Twin (LTP 04HBE), Quad (LQP 04HBE), Quattro (LRP 04HBE), Octo (LOP 04HBE) |
|---|
