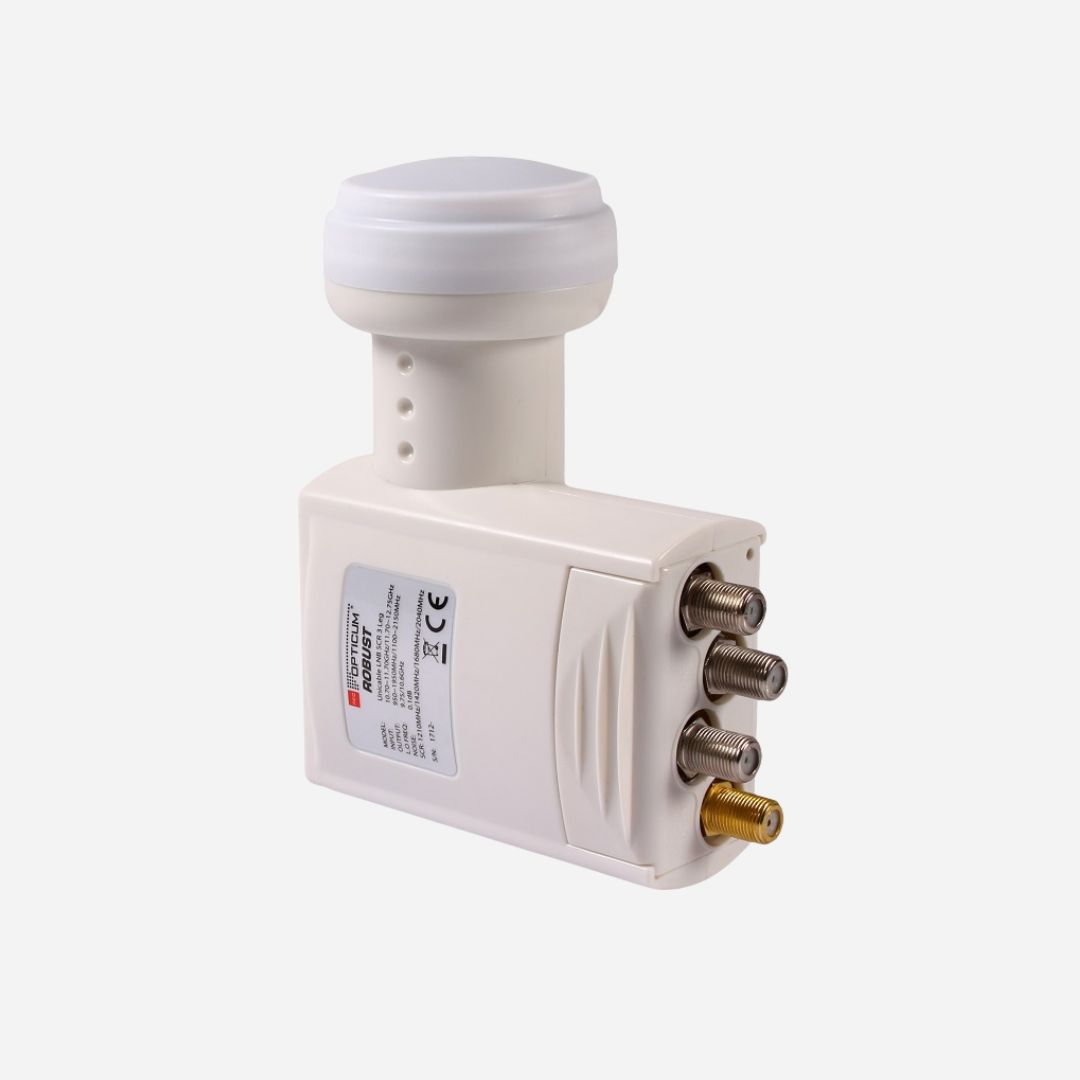

Satellite LNB OPTICUM RED ROBUST SCR 4UB + 3 LEGACY

Description

The OPTICUM RED ROBUST SCR 4UB + 3 LEGACY satellite LNB is a professional and extremely versatile solution designed for modern satellite installations. Thanks to the use of innovative Unicable (SCR) technology, the device allows for signal transmission to 4 independent receivers using only one coaxial cable, which significantly simplifies installation and reduces cabling costs.

A key advantage of the ROBUST model is the unique combination of outputs: one gold SCR output (supporting up to 4 set-top boxes in the EN50494/EN50607 standard) and three silver Legacy outputs. This configuration allows for the simultaneous and independent operation of up to 7 satellite receivers, combining modern single-cable systems with traditional tuners within a single antenna system.

The device features high conversion gain (57 dB) and full optimization for transmissions in the highest resolutions. The solid Robust construction ensures full resistance to moisture, frost, and heat, while a special pull-down weather cover effectively protects the gold-plated F-type connectors from corrosion and atmospheric factors.

Key product features:

• Image Standard: Full compatibility with 4K UHD, Full HD, and 3D technologies.
• Unicable Technology (SCR): Support for up to 4 digital receivers using a single cable (channels: 1210, 1420, 1680, 2040 MHz).
• Legacy Outputs: 3 additional ports allowing for direct connection of standard set-top boxes without SCR function.
• Extreme Durability: Housing made of materials resistant to extreme temperatures, equipped with a pull-down connector cover.
• High Performance: Stable signal thanks to a 57 dB gain level and very low phase noise.
• Easy Installation: Standard 40 mm feed diameter ensures compatibility with any modern satellite dish.

Technical specification:

• SCR channel frequencies (UB): 1210, 1420, 1680, 2040 MHz.
• Noise figure: 0.1 dB (typ).
• Input frequency: 10.70 – 11.70 GHz / 11.70 – 12.75 GHz.
• Conversion gain: 57 dB.
• Current consumption: 200 mA (typ) / 300 mA (max).
• Feed diameter: 40 mm.

The Opticum RED Robust SCR + 3 Legacy LNB is a reliable choice for those seeking uncompromising image quality and durability for their satellite installation at an affordable price.
