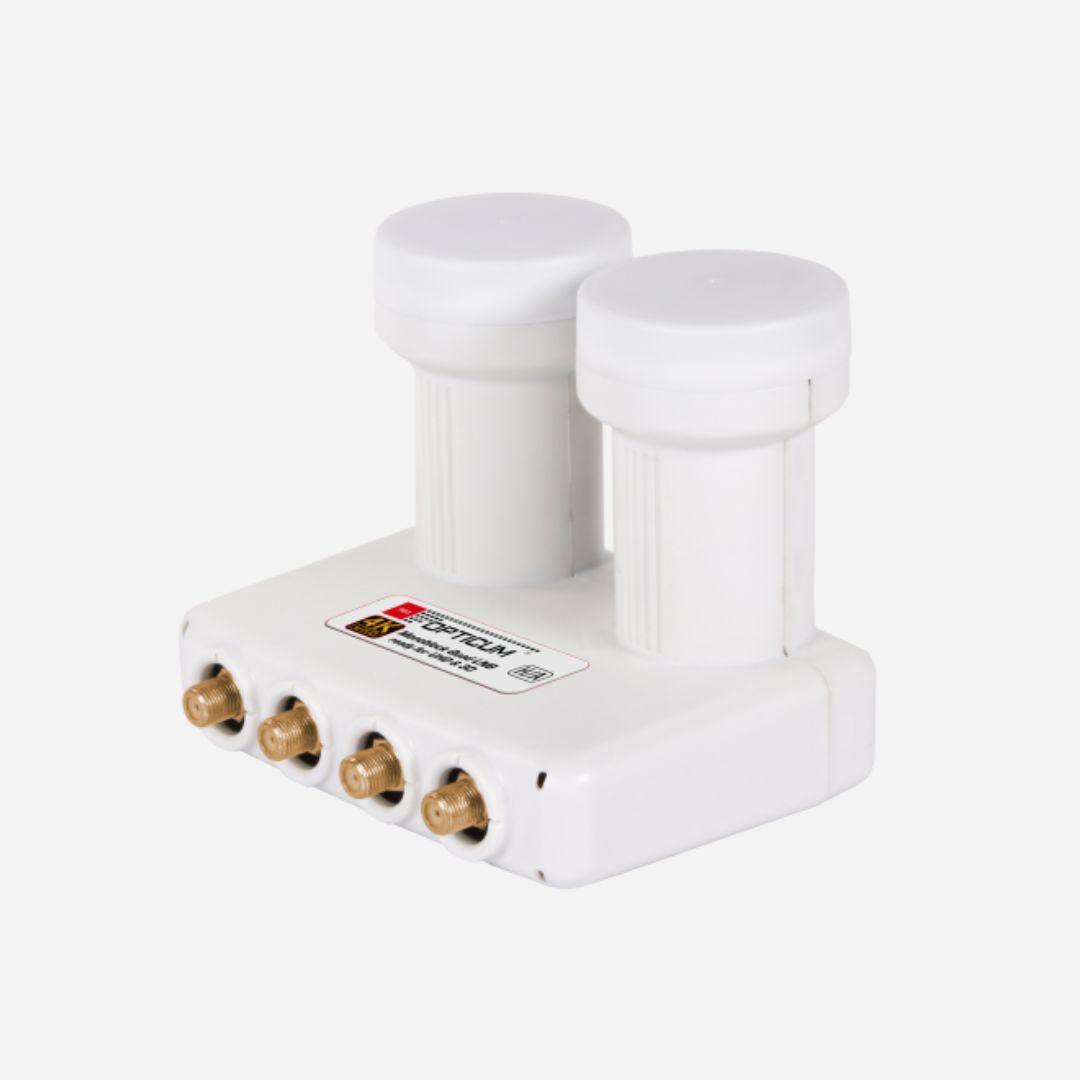

Satellite LNB OPTICUM RED MONOBLOCK QUAD LMQP-04H (A/H)

SKU: KON0008-H/A

The Opticum Monoblock Quad LMQP-04H LNB is an advanced device that enables the reception of signals from two satellite positions – Astra 19.2°E and Hotbird 13.0°E – using only one antenna. Equipped with 4 independent outputs, it allows for the simultaneous connection of up to four satellite receivers, providing each user with full freedom in channel selection.

Description

The OPTICUM RED MONOBLOCK QUAD LMQP-04H (A/H) satellite LNB is a professional and integrated solution designed for the simultaneous reception of signals from two satellites: Astra 19.2° East and Hotbird 13.0° East[cite: 30]. Thanks to its precise design, the device eliminates the need to install two separate LNBs and complex brackets, which significantly simplifies the antenna installation.

The key advantage of the LMQP-04H model is that it is equipped with four independent outputs, allowing for direct connection of up to 4 satellite receivers (or two dual-tuner PVR receivers)[cite: 30, 120]. Each user gains completely independent access to the full programming offer from both satellites, and automatic signal switching is handled by the built-in DiSEqC 1.0 protocol (Port A = Astra, Port B = Hotbird)[cite: 18, 120].

The device is characterized by an exceptionally low noise figure (0.1 dB typ.) and is fully optimized for transmissions in the highest resolutions: 4K UHD, Full HD, and 3D[cite: 12, 120]. The solid housing with built-in weather protection ensures full resistance to moisture, frost, and heat, guaranteeing reliable operation of the installation for many years[cite: 120].

Key product features:

Dual Satellite Reception: Integrated system for simultaneous reception of Astra 19.2°E and Hotbird 13.0°E on a single dish[cite: 30, 120].
Support for 4 Users: Four independent outputs for direct connection of 4 satellite tuners[cite: 30, 120].
Automatic Switching: Built-in DiSEqC 1.0 switch (Astra on Port A, Hotbird on Port B)[cite: 18, 120].
Image Standard: Full compatibility with 4K UHD, Full HD, and 3D technologies[cite: 12].
High Precision: Very low noise figure (0.1 dB typ.) guarantees the highest quality and signal stability[cite: 120].
Easy Installation: Standard 40 mm feed diameter ensures compatibility with any modern satellite dish[cite: 120].

Technical specification:

Input Frequency Range: 10.70 – 11.70 GHz / 11.70 – 12.75 GHz[cite: 120].
Noise Figure: 0.1 dB (typ)[cite: 120].
Local Oscillator Frequency (LO): 9.75 GHz / 10.60 GHz[cite: 120].
Control (Switching): DiSEqC 1.0 (A = Astra, B = Hotbird)[cite: 18, 120].
Feed Diameter: 40 mm[cite: 120].
Weather Protection: Yes[cite: 120].

The Opticum RED Monoblock Quad LMQP-04H LNB is a reliable choice for those seeking uncompromising image quality and ease of installation in extensive home systems.

TECHNICAL SPECIFICATIONS

Subscribers (max.)	4
Supported Satellites	Astra 19.2° E / Hotbird 13.0° E
Input Frequency Range	10.7 – 12.75 GHz
Oscillator Frequency	9.75 / 10.6 GHz
Output Frequency	950 – 1950 / 1100 – 2150 MHz
Control	DiSEqC 1.0 (A=Astra, B=Hotbird)
Noise Figure	0.1 dB (typ.)
Feed Diameter	40 mm
Weather Protection	Yes
Image Standards	4K UHD / 3D ready [cite: 12]
